Semi-Automated Adaptation of Service Interactions

Hamid Reza Motahari Nezhad*, Boualem Benatallah
University of New South Wales
Sydney, Australia
Hamid's Email

Abstract:

In today's Web, many functionality-wise similar Web services are offered through heterogeneous interfaces (operation definitions) and business protocols (ordering constraints defined on legal operation invocation sequences). The typical approach to enable interoperation in such a heterogeneous setting is through developing adapters. There have been approaches for classifying possible mismatches between service interfaces and business protocols to facilitate adapter development. However, the hard job is that of identifying, given two service specifications, the actual mismatches between their interfaces and business protocols.

In this paper we present novel techniques and a tool that provides semi-automated support for identifying and resolution of mismatches between service interfaces and protocols, and for generating adapter specification. We make the following main contributions: (i) we identify mismatches between service interfaces, which leads to finding mismatches of type of signature, merge/split, and extra/missing messages; (ii) we identify all ordering mismatches between service protocols and generate a tree, called mismatch tree, for mismatches that require developers' input for their resolution. In addition, we provide semi-automated support in analyzing the mismatch tree to help in resolving such mismatches. We have implemented the approach in a tool inside IBM WID (WebSphere Integration Developer). Our experiments with some real-world case studies show the viability of the proposed approach. The methods and tool are significant in that they considerably simplify the problem of adapting services so that interoperation is possible.

Categories and Subject Descriptors: D.2 [Software]: Software Engineering; D.2.2 [Software Engineering]: Design Tools and Techniques-Modules and interfaces; D.2.12 [Software Engineering]: Interoperability-Data Mapping, Interface Definition Languages; H.4.m [Information Systems]: Miscellaneous

Keywords: Web Services, Service Adaptation, Service Interface Matching, Service Protocol Adaptation

1 Introduction

While standardization in Web services has proved effective for integration at the lower levels of interoperability stack, interoperation at the level of service interfaces and business protocols is still a challenge due to the heterogeneity of service specifications, developed by different teams or companies. Service interfaces (often syntactically specified in WSDL) declare all operations of a service. Business protocols define ordering constraints on the allowed operation invocation sequences [5,4,8].

In today's Web, services that are similar in terms of functionality are offered through different interfaces and protocols. The default approach for a company, using one of such services, in switching to another similar service is to develop new clients for the new service. This approach is often time consuming and costly (it requires re-designing, re-implementing, re-testing, and deploying the new client's code), and also does not always allow for reusing existing implementations. On the service side, even a small change in a service may have a significant impact on potentially thousands of clients, some of which are not prepared for the change. So, a company may have to keep several versions of a same service operating.

An alternative to developing new clients (or keeping several versions of a service for different clients) is that of developing service adapters. Service adaptation refers to the process of generating a service (the adapter) that mediates the interactions among two services with different interfaces and protocols so that interoperability can occur. Adaptation has received a significant attention in different areas including software component integration (e.g., [29,13,6]), process integration ([20]), and recently in the Web services area [23,12,11,18,7,3]. It has been also accepted as a common practice to facilitate interoperation of heterogeneous applications in commercial products, e.g., in BEA WebLogic Adapters [2], and IBM WebSphere Integration Developer (WID)[16].

In the literature, many approaches (e.g., [11,18,3]) attack the problem by identifying possible classes of mismatches between service interfaces and protocols and suggest methods to resolve mismatches in each class. As an example, we present below some of the most common mismatch classes [3]. We denote by SP the service provider and SC the service clients to be adapted:

There are two subtypes of ordering mismatch: unspecified reception, in which one party sends a message while the other is not expecting it; and deadlock, i.e., the case where both parties are waiting to receive some message from the other. To illustrate the concepts, consider the protocols of SP and SC in Figure 1(a): SC sends message b (shown by a -b), while SP does not expect to receive it (unspecified reception). In Figure 1(b) instead, SC expects to receive message ack after sending a (shown by +ack), while SP is waiting to receive b (+b). This is a deadlock case.

Adaptation in case of unspecified reception could be automatically handled as an adapter for protocols in Figure 1(a) can receive b, buffer it and send it to SP after exchanging a (e.g. see [29]). Figure 1(c) shows the adapter for protocols in Figure 1(a), in which + $\langle$ SC, b $\rangle$ means adapter receives message b from service SC. However, adaptation in a deadlock case is a challenging task and requires extra knowledge (e.g., construction of messages ack or b in the adapter) to resolve the deadlock.

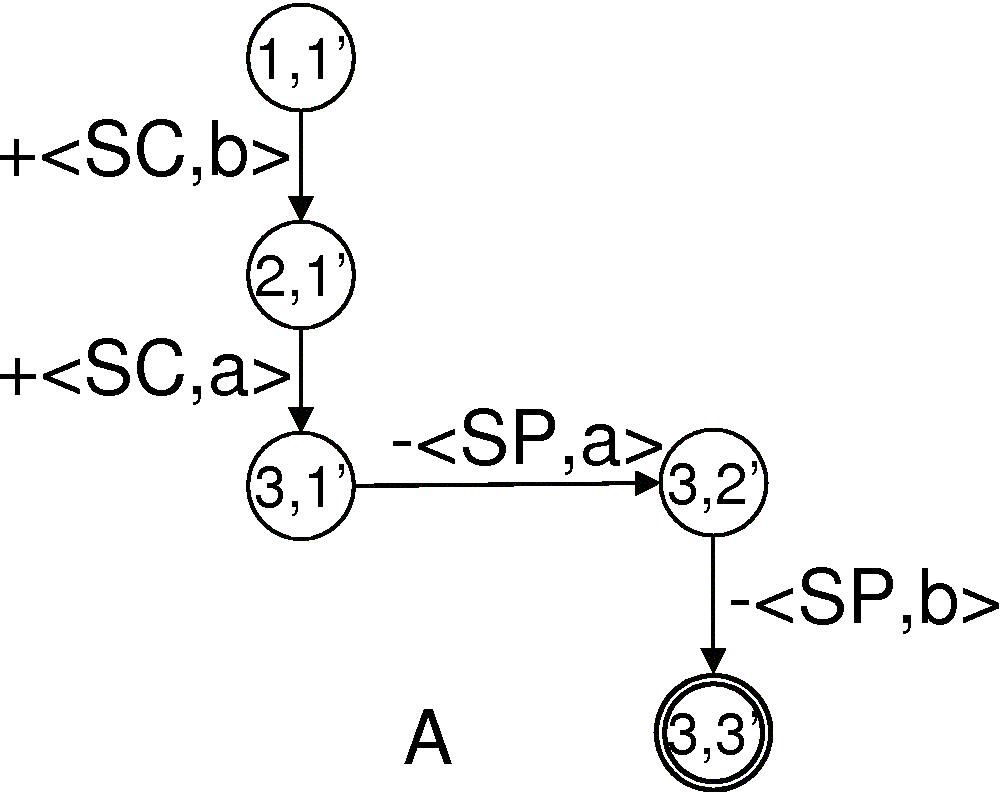

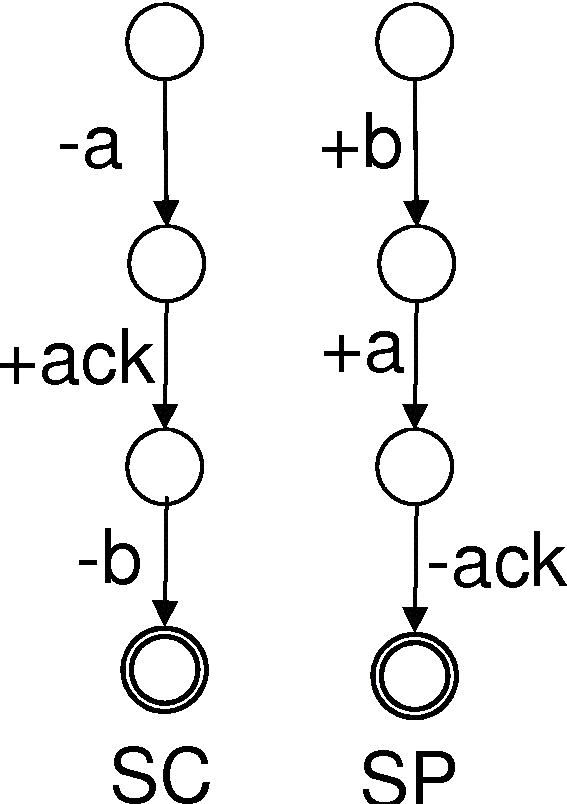

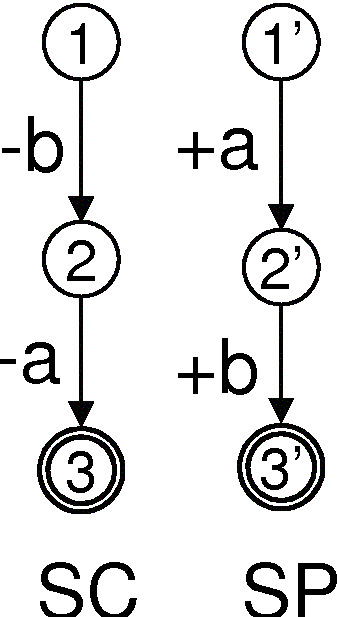

**Figure 1:** Ordering mismatches: (a) unspecified reception, (b) deadlock, (c) an adapter for protocols in (a)
(a)	(b)	(c)

While identifying classes of possible mismatches between service specifications is important, the problem of service adaptation is not really addressed until we can assist developers in comparing two services, identifying which types of mismatches there are, and in developing the adapter. Approaches for automatic adapter generations for software component models [29,6] and service protocols [7] exist. While they do provide interesting insights into the problem, they make the following assumptions regarding two key issues: (i) they assume there is no mismatch at the interface-level, or the interface mappings have been provided by the developer, and (ii) if there are interactions which lead to deadlocks, such interactions are considered as not adaptable. However, our experiments show that: first, the interactions of many real-world services may result in deadlocks; and second, careful analysis of some of such cases reveals that they are in fact adaptable (see e.g., the example in Section 2).

In this paper, we first provide a model for service adapters consisting of interface mappings and the adapter protocol. The adapter protocol represents the message exchanges of adapter with adapted services, and actions that instruct the adapter how to utilize interface mappings before/after each message exchange (Section 3). Then, we present a method and tool that provides semi-automated support to mismatch identification and adapter generation. We aim at identifying and resolving both interface-level and protocol-level mismatches and at providing a platform that can generate adapters semi-automatically. Specifically, we make the following contributions:

Finally, in Section 7 we discuss related work and present the concluding remarks.

2 A Motivating Example

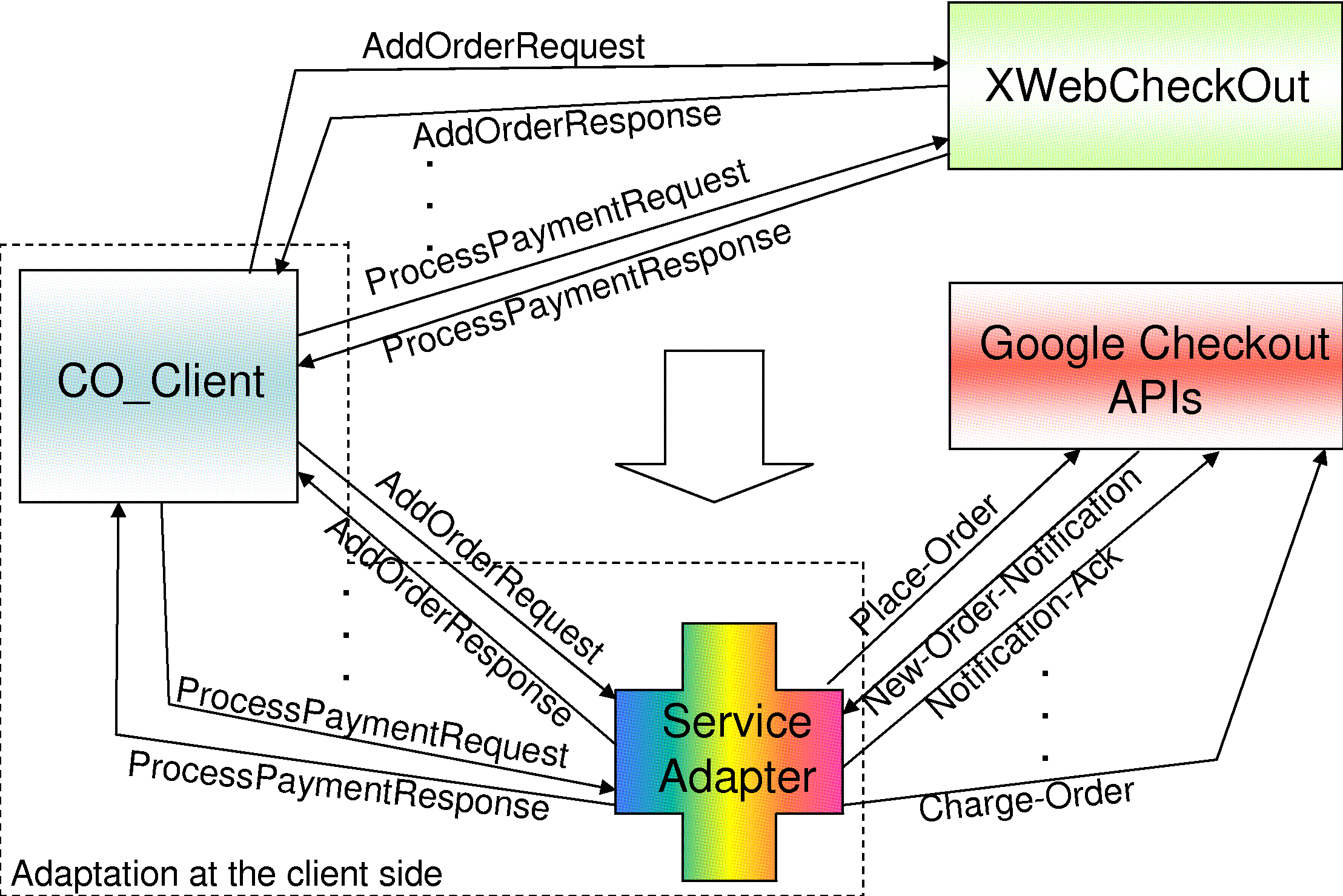

As a motivating example, we consider an adaptation task for services in the management of shopping carts. XWebCheckOut² and Google Checkout³ are commercial checkout services. They provide a facility for sellers to manage the orders that they receive on their own websites. The only major difference between these two services is that Google Checkout also provides an administration website for buyers (people who do shopping on sellers' websites). Buyers register their details with Google and manage their orders through that website. In XWebCheckOut, sellers provide administration support for buyers in sellers' websites. Some APIs are provided by XWebCheckOut to facilitate this task, for which there is no counterpart in Google APIs. Other than this, the two services offer similar functionalities, but through different interfaces and protocols.

Assume that XWebCheckOutClient (for short CO_Client) is a seller and a client of XWebCheckOut. For some reason (e.g., XWebCheckOut rises service fees), the client decides to either replace XWebCheckOut or extend its offering with Google Checkout APIs. Ideally, CO_Client would like to adapt its implementation to interact with Google Checkout, as opposed to developing a new client from scratch (Figure 2).

These two services provide similar APIs for order creation and management, payment processing, and order cancellation. However, there are differences in the interface definition (message names, number, and types) and how they exchange messages to fulfill a functionality. For example, Figure 3 shows the protocols of the two services for placing an order. Using existing approaches to adaptation, besides the problem of having to derive interface mappings "by hand", it would not be possible to derive adapters for these protocols. This is because their interaction results in deadlock, as in states 2 the CO_Client service expects to receive message AddOrderResponse, which is not supported by Google, while Google expects the message Notification-Acknowledgment in state iv. Hence, their interaction leads to deadlock. However, the services are in fact adaptable (by construction of above two messages in the adapter). In the following we show how both the interface and protocol adaptation problems can be addressed in this example and in general.

3 Service Adapters

In this section, we introduce concepts and definitions to provide a formal basis to service adaptation. We begin with the interface definition, which is essentially a simple formalization of WSDL. An interface I of a Web service SP, denoted by I_s, is defined as follows:

Definition 3.1 An interface I_s is a triplet P = (D, M, O), where D is the set of (XML) data types of the service, O is the set of operations supported by the service, M is the set of messages exchanged as part of operation invocations, in which:

a message m has optionally i $\geq$ 1 parts, represented as m = < d₁, d₂,..., d_i >, m $\in$ M, d_j $\in$ D, 1 $\leq$ j $\leq$ i
o = < m_req, m_res, m_f >, that is, o $\in$ O is an operation associated to at least a request message m_req or to a response message m_res (or both) and possibly a fault message m_f.

Next, we extend the notion of mapping between component interfaces in [29] for Web services.

The interface mapping IM_{<
s, c >} may contain more than one mapping functions for a given message m $\in$ I_s, or may not contain any function for another message m' $\in$ I_s. This definition allows for specifying 1 - 1 mappings (to resolve message signature mismatches) and 1 - n mappings (resolving message split/merge mismatches) between messages of the two interfaces. Based on messages mappings in IM_{<
s, c >} we can establish the mappings between operations O_s and O_c in I_s and I_c. Finally, we define the the interface mapping IM_A for the adapter as the union of mappings from interface I_s to I_c, and from I_c to I_s, that is IM_A = IM_{< s, c >} $\cup$ IM_{<
c, s >}. We use im to refer to a given mapping function for message m in IM_A.

We adopt finite state machines (FSM) as the modeling formalism for business protocols [15,4]. FSM is a well-known paradigm, easy to understand and formalize for developers, and widely used for modeling business interactions [8].

We define the notion of adapter for service protocols by extending the proposal of [29] for software components as follows. An adapter is analogous to protocol model where states are pairs of states of the services to be adapted, transitions are labeled with a message along with the message target (SP or SC). In addition, adapters have actions. Actions are associated to transitions and allow adapters to, for example, store messages (to handle ordering mismatches) or to apply message transformations by utilizing mapping functions.

Definition 3.4 The protocol of an adapter A (denoted by P_A) for adapting interactions between P_s and P_c is a protocol with the following extensions:

M_A = M_s $\cup$ M_c.
Each state s_A of P_A is a pair $\langle$ s_s, s_c $\rangle$ , in which s_s (s_c,respectively) indicates the corresponding state of P_s (P_c, respectively) while adapter is in state s_A.
Each transition t_A of adapter is shown in form of + / - $\langle$ s_A, s'_A, partner, m $\rangle$ , in which + (or -) specify that the adapter A is receiving (sending, respectively) message m from (to) partner service, and takes the adapter from state s_A to s'_A. The parameter partner can be one of SP or SC.
A transition t_A may be associated to actions ``save (m)'' and ``activate (m)'' after receiving a message m; to actions ``synthesize (m,im)'' , im $\in$ IM_A before sending a message m, and to action ``inactivate (m)'' after sending a message m.

The optional actions allow to instruct the adapter to use interface mappings information. save(m) instructs the adapter to save message m inside the adapter. For each message m $\in$ M_A, an activity flag is kept inside the adapter, and activate(m) ( inactivate(m)) actions sets/unsets the activity flag of a message m to true in the adapter to show if the adapter has received the message. Finally, Synthesize(m, im) instructs the adapter to use the interface mapping im information to construct m. Finally, given the above definitions, an adapter is defined as follows:

As discussed before, unlike existing approaches for automated adapter generation in [29,7,6], we do not assume the the interface mapping IM_A is provided, but we propose an approach to help the developer in providing interface mappings. The interface mappings is performed in a two-step process: (i) identifying interface matching, which is the process of identifying the relationships between messages in I_s and I_c. This includes identifying relationships between the data types of messages in the two interfaces. The purpose of this step is to find the set X of parameters of the function func(X) that generates m; (ii) Specifying mapping functions. In this step, the mapping function func(X) that returns m is specified. We propose a methodology to help the user in performing the first step, as discussed in Section 4. The second step is performed by the adapter developer, as discussed in Section 6. The identification of the matching between data types of messages in X and message m is the most important part in specifying func(X).

4 Interface-Level Mismatches

Given two service interfaces I_s and I_c and protocols P_s and P_c, the goal is to find the matching between messages in interfaces I_s and I_c. In this phase, we do consider not only the information in I_s and I_c, but also the ordering constraints that protocols define. We argue that interface matching cannot be addressed properly without considering the ordering constraints, as well, since e.g., a given mapping function m $\leftarrow$ func(m₁, m₂) may seem possible by looking at the interface-level information, but considering the protocol information, the adapter may not have received m₁ and m₂ when it is needed to synthesize m. In the following, we present a semi-automated approach for identifying a set of initial matchings based on information at the interface-level, and then discuss in Section 4.2 how we improve the matching results based on protocol-level information.

1 Interface Matching

As mentioned before, we base our interface matching on approaches in schema matching [24]. The reason is that like approaches in schema matching, we are interested in finding the matching between the data elements in the schemas of two services. This helps us to find the relationships between messages of Web services. Schema matching is a hard problem. In general the results on large and arbitrary schemas (of services) may not be always useful [25]. Fortunately, we have additional information compared to schema matching approaches in service interfaces, which are message and operation definitions, that act as additional constraints. We use the following heuristics based on message and operation definitions to increase the precision of matching in the matching of schema definitions of any two service interfaces:

Pair-wise matching of schemas of messages. Our experiments with schema matchers show that usually we do not get precise matching results using the whole schemas of two services at once. Working on service (WSDL) interface allows us to break down the problem of schema matching into matching schemas of individual messages of two schemas. We identify fragments of schemas to be compared at each step. We perform such comparison for all pairs of messages from the two interfaces. This results in increasing the precision of each matching, however, the number of required matchings increases from one to the Cartesian product of number of messages in the two interfaces. We believe that is an acceptable overhead to achieve higher precision.

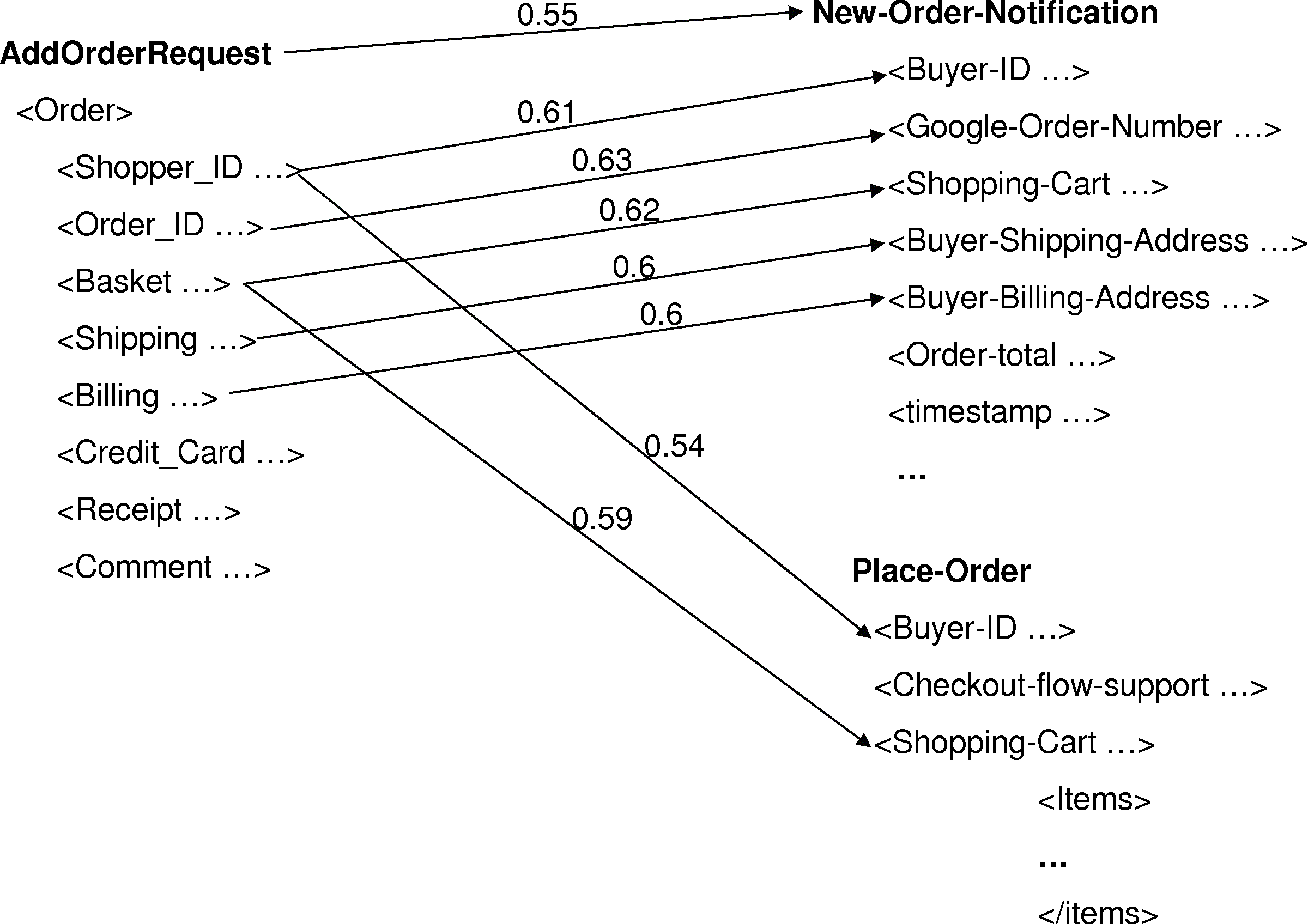

To illustrate the approach, let's consider the schema of <Order> in XWebCheckout and its corresponding matches in Google APIs depicted in Figure 4. We used COMA++ [9]⁴ to find the matching between the whole schema of XWebCheckout and that of Google Checkout. The only matched elements where <address> in <Billing> and <Shipping> to <address> data type in Google. However, in pair-wise comparison of <Order> (schema of AddOrderRequest message) the result was more precise. The relationships between messages Place-Order and New-Order-Notification are captured as depicted in Figure 4. These two schemas are the closest to <Order> in the schema of Google Checkout with the matching score of 0.29 and 0.55, respectively. This is because the parameter of AddOrderRequest is of type Order, which has the following schema elements: Order_ID, Shopper_ID, Basket, Shipping, Billing, Credit_Card, Receipt, and comments (Figure 4). Basket contains all items that are ordered by buyers. Shipping and Billing specify the shipping and billing addresses, respectively. In Google, message new-order-notification contains almost all the data types in Order, however, Order and Place-Order are matched only in Shopper_ID, Buyer-ID, and Basket, Shopping-Cart.

Finally, we used the observation that if some parts of a message are matched with elements in one message and some other parts of the same message are matched with elements of other messages, then it is an indication of a merge/split mismatch (1-n matching).

Incorporating message name into the schema. Our experiments also show that if we incorporate the message name into the schema for that message, it increases the precision of mappings. This is performed through creating a new complex XML element, named after the message, and includes the schema of the messages. This is considered in Figure 4.

Considering the message type. An indication that helps in reducing the number of required pair-wise message matchings is considering the message type, i.e., if a message is an input or output of an operation definition. When generating adapters for compatibility (adapting a client to work with a given service), we only check the matching between output (input) messages of each operation of the client interface with the input (output, respectively) messages in the service interface. When generating adapters for replaceability (developing the adapter to make the specification of a service similar to another given service) we check only matching between the input (output) messages of operations of a service with the input (output, respectively) in the other service interfaces.

In Figure 4 we have the interfaces of the two services XWebCheckout and the Google Checkout. Without considering the operation definitions, the matching results in Figure 4 suggest that message new-order-notification is the best match for message AddOrderRequest based on the matching score. However, if we consider the operation definition constraints on mappings, we observe that AddOrderRequest is an input message for AddOrder operation, while message new-order-notification is an output message in a notification operation with the same name. On the other hand, Place-Order message is the input of Place-Order operation. So, considering the operation definitions we conclude that the only AddOrderRequest is a possible match for Place-order, although it has a smaller matching score.

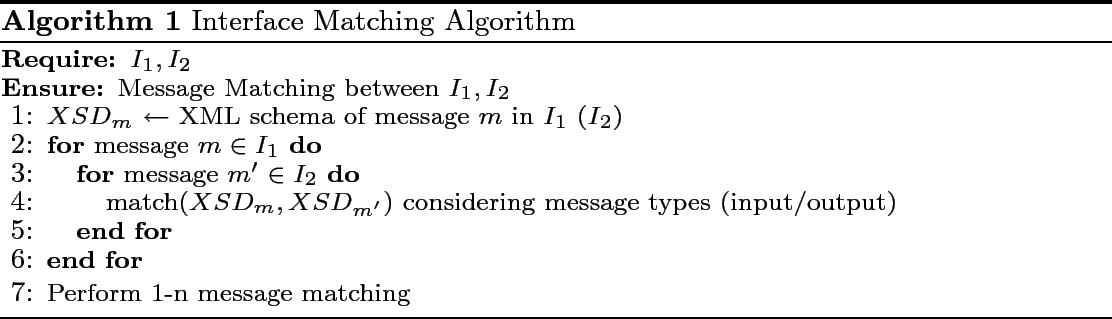

The following algorithm summarizes our interface matching method, in which I₁ and I₂ denote the WSDL interface of two services:

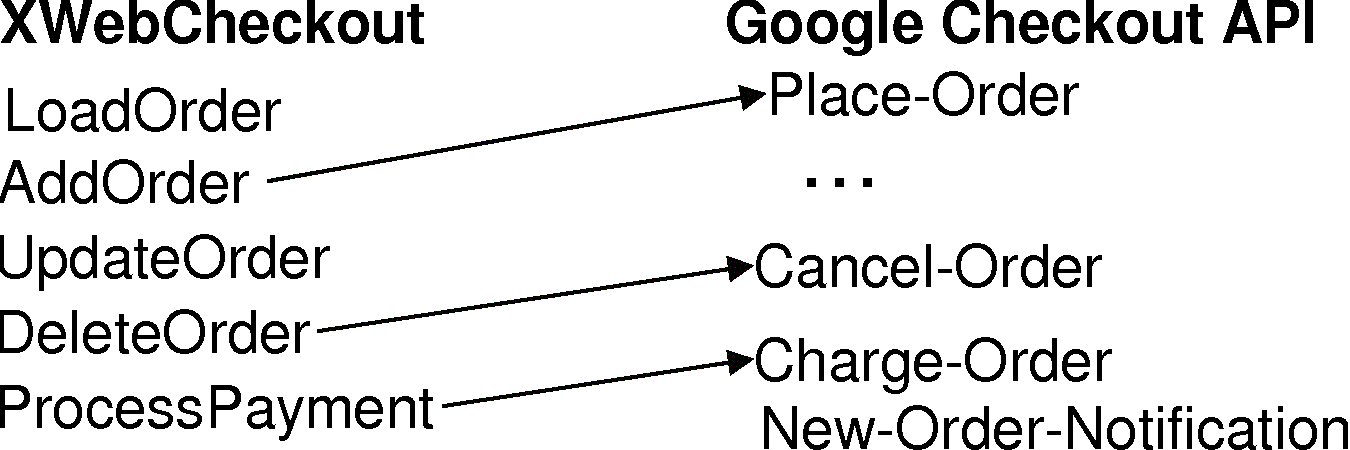

Figure 5 shows the matches for some of the operations in the two interfaces for Google and XWebCheckout. The result of matching indicates all operations required by CO_Client are covered by Google except two operations, which are LoadOrder and UpdateOrder. In fact, these two operations are used by CO_Client in its Website to allow buyers to load and update orders. However, since Google provides a separate website for buyers, these two operations are not needed to be invoked. On the other hand, there are many messages in the Google interface that do not have a match in CO_Client, e.g., new-order-notification. This is an extra message in the Google interface.

2 Applying Ordering Constraints

As discussed before, it may not be always possible to use all matching results that are generated based only on the interface information during the adapter generation. This becomes clear by considering the ordering constraints that two services impose on the exchange of messages. We refer to such matches as non-plausible matches. As an example, let's consider the protocol definitions SP and SC in Figure 1(b). Interface matching results for these protocols specifies that message <SC,ack> is matched to message <SP,ack>. However, considering ordering constraints, we observe that the message <SP,ack> is not received by the time that <SC,ack> is needed, so this mapping is not plausible. Hence, the mapping function of message <SC,ack> cannot take the set X identified in this step.

Therefore, we need to verify the interface matchings generated based on the information level information, and identify the set of non-plausible interface mappings using the ordering constraints defined in protocols. This has to be done before proceeding to ask the user to generate the interface mapping functions that take the input X and transform it to message m, as otherwise such mapping functions will be useless. However, there may be other possible matching (e.g., a different set X) that makes the mapping possible.

Among all types of possible mismatches that we studied in the paper, decision making regarding if we need to develop mapping functions for extra/missing messages in the two interfaces also could not be answered without considering the protocol-level information. This is because the protocol-level information will clarify if and at what state during the interactions such messages are required. For example, there are many messages in the Google interface, e.g., merchant-calculation-results, which is not communicated with CO_Client, and also New-Order-Notification, which is sent as a part of placing order but client does not require it. However, Notification-acknowledgment should be provided for a successful interaction with Google, so a mapping is required to be provided. Answering all of these questions requires protocol-level analysis. In the next section, we present our approach for providing such an analysis.

5 Protocol-level Mismatches

After applying the interface matching techniques, we get the matching between messages of I_s and I_c, and so the interface mapping IM_A. Given IM_A, in this section, we use the protocol definitions P_s and P_c of the two services to find all protocol-level mismatches. As discussed before, there are two types of mismatches at the protocol-level: unspecified reception, and deadlock. Existing approaches handle unspecified reception automatically (see e.g., [29,6,7]). The interaction of the generated adapter in these approaches guarantee to be deadlock-free. However, investigating if the deadlocks can be resolved is challenging, and has not been addressed. Note that our focus is different than other existing work that use formal verifications e.g., based on CSP and Pi-Calculus to generate deadlock-free interaction given the protocols of the services [21]. There, the goal, similarly in automatic adapter generation, is realized by removing paths of interactions that result in deadlock. However, we focus on how to resolve the deadlock, if possible, rather than disallowing them without investigating their resolution. The presented approach is general and could be applied to deadlock resolution in above mentioned approaches, as well.

As we explain in the following, mismatches with deadlock is caused by either the lack of required interface mappings in IM_A, or non-plausible interface mappings in IM_A. In fact, we only understand these two cases by considering the protocol-level information. In this section, we propose techniques to identify such mismatches, represent and analyze them to help the user in providing new interface mappings or refining existing interface mappings in IM_A, if possible, to avoid the deadlocks during the adapter generation.

We perform protocol-level analysis through simulating the adapter generation process, which explores all possible message exchanges between the two services according to P_s and P_c. In the following we first present an algorithm for adapter simulation. Then we discuss our approach for providing a concise representation of all mismatches with deadlock, and analyzing them to make suggestions to the developer to resolve such mismatches. Suggestions are in form of identifying the input X for the mapping functions that enable construction of the messages that are engaged in deadlocks.

1 Adapter Simulation Process

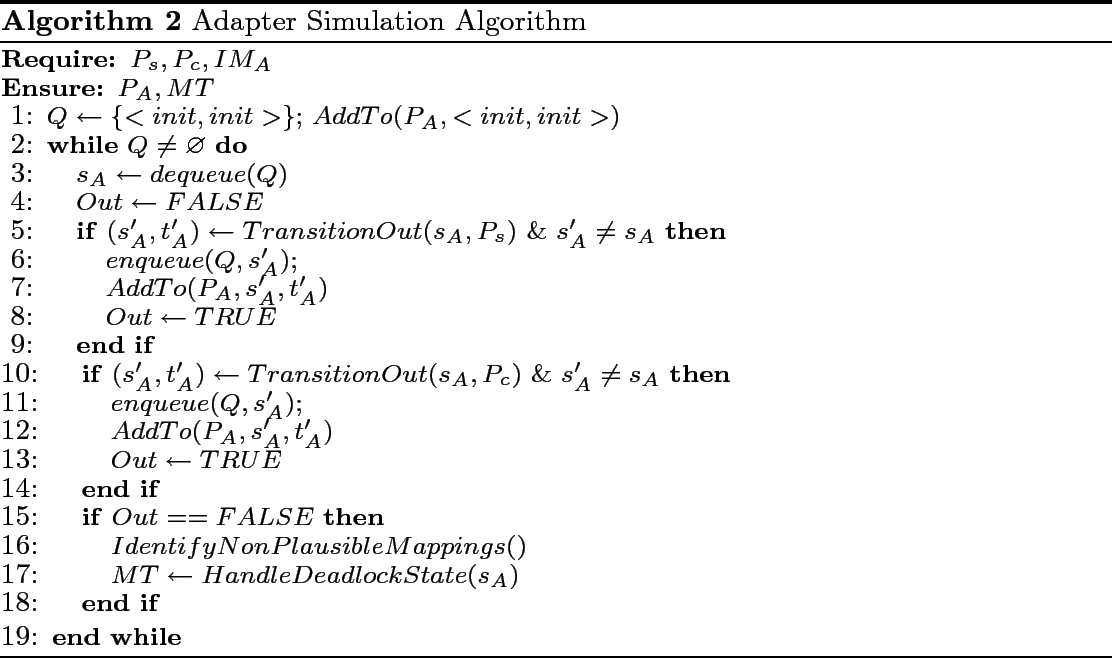

The following algorithm summarizes the adapter simulation procedure, which is adapted from the automatic adapter generation process in [29]. The input of the algorithm is protocols P_s, P_c, and interface mapping IM_A between I_s and I_c. The output of this algorithm is protocol P_A also MT, which stands for mismatch tree for representing all deadlock cases in the two protocols.

The variable Q implements a queue structure that is a list to keep track of all possible state s_A of the adapter. For each s_A, function TransitionOut(s_A, P_x), P_x = P_s, or P_x = P_c, checks if there are possible message exchanges between the service and the adapter, or the state s_A is a deadlock state (Out = = False). A state is a deadlock state if there is no possible message exchange between the service and any of the two services SP and SC in that state. This happens if both services are waiting to receive some messages that the adapter can not synthesize. If one of the following two conditions holds it means that a transition out of s_A exists and the adapter transits from state s_A to s'_A:

If outgoing transitions are found for a state s_A, then the new states of s'_A are put in Q, and s'_A and corresponding t'_A are added to P_A. Otherwise, s_A is a deadlock state. In existing approaches for automatic adapter generation [29,6,7], deadlock states are removed from the adapter, i.e., such interactions are not supported by the adapter. However, in the following we propose an approach to give the user an opportunity to examine if the adaptation is possible or not.

2 Handling Mismatches with Deadlock

As discussed before, mismatches with deadlock are due to one of the following two cases: (i) provided mapping im for a message m is not plausible, or (ii) there is no mapping provided for a message m (e.g., for a missing/extra message). To illustrate the approach, let's consider protocols SP and SC in Figure 6(a), in which their interactions result in deadlock as both are waiting to receive some messages in states 1 and 1', respectively (SP is waiting for message a and SC for message c). We propose the following two approaches for dealing with such situations: (i) progressive user interaction, (ii) mismatch trees generation.

1 Progressive User Interaction

This approach is simple, however, it has two main disadvantages: (i) it may involve too many interactions with the developer, (ii) more importantly, as the future message exchanges of two protocols after the deadlock point is not taken into the account, the developer may not make the best decision. For example, assuming that for resolving the deadlock in Figure 6(a) it is possible to provide mapping functions for any of $\langle$ SP, a $\rangle$ or $\langle$ SC, c $\rangle$ and the developer selects to provide for $\langle$ SP, a $\rangle$ , then the next deadlock occurs between $\langle$ SP, b $\rangle$ and $\langle$ SC, c $\rangle$ . However, if the developer had decided to provide mappings for $\langle$ SC, c $\rangle$ , then no more deadlocks would have occurred.

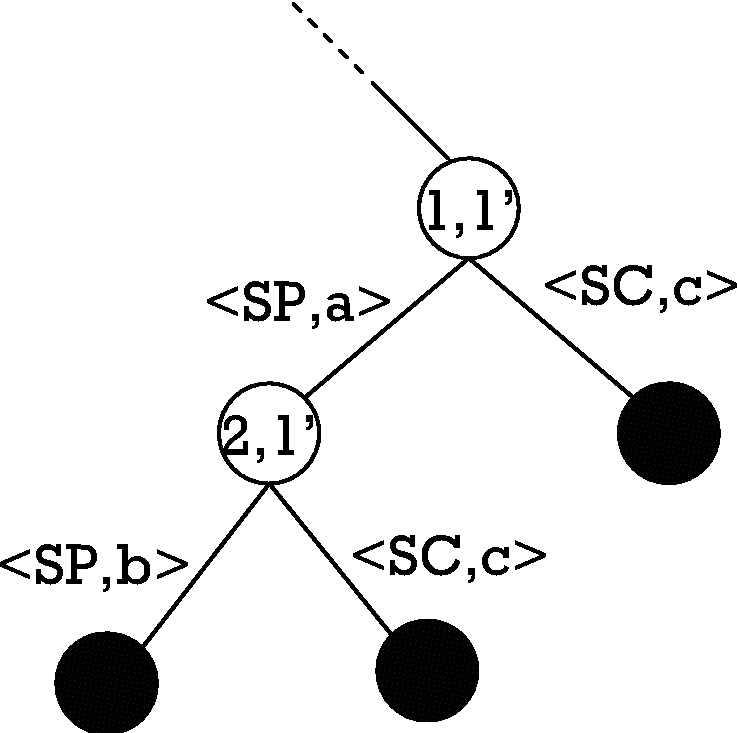

**Figure 6:** (a) ordering mismatch with deadlock, (b) the *mismatch tree* for SP and SC
(a)	(b)

2 Generation of Mismatch Trees

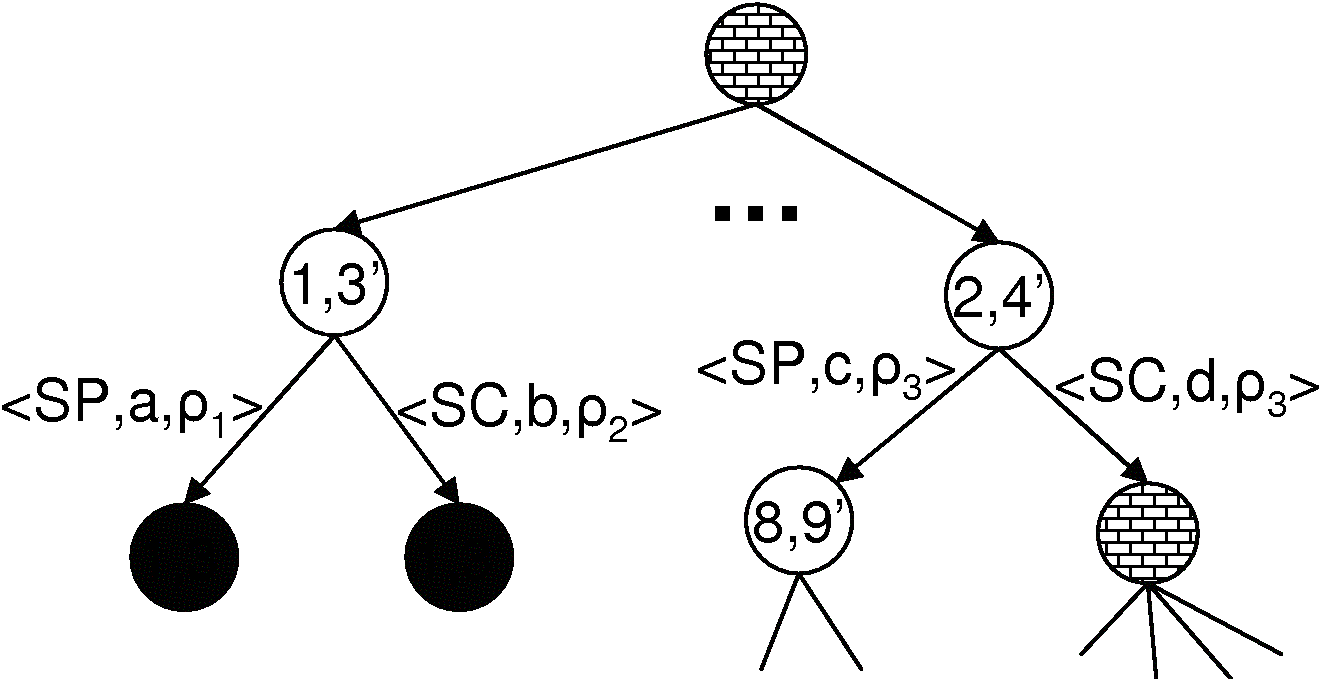

Motivated by the goal of finding all deadlock cases between two protocols, in this approach, we perform a what-if analysis for each deadlock case, in the sense that: assuming that a mapping could be provided for each of the messages engaged in the deadlock, then how the message exchanges between two protocols proceed until the exchange ends up in final states in both protocols. Based on the result of this analysis, we build a tree, which is called a mismatch tree (MT). A MT represents all possible deadlocks between two protocols, and the messages that are engaged in each deadlock. For example, the MT for SP and SC in Figure 6(a) is depicted in Figure 6(b). It states that in state $\langle$ 1, 1' $\rangle$ of adapter (state 1 of SP and 1' of SC, respectively), there is a deadlock that messages <SP,a> and <SC,c> are involved in it. From the deadlock resolution point of view, this node represents a choice (or-condition), in which if a mapping for either of <SP,a> or <SC,c> is provided the deadlock is resolved. It also shows all future deadlocks that would occur in each path of the tree. For example, if the developer provides a mapping for <SP,a>, then the next deadlock occurs in state $\langle$ 2, 1' $\rangle$ , which represents a choice between <SP,b> and <SC,c>.

In general, MT is an AND-OR tree. An AND-Node does not represent a deadlock case itself, but specifies that all deadlock cases that are children of this node should be resolved. The root of MT is an example of an AND-Node. The outgoing edges of an AND-Node do not have any label, but they are linked to other AND-Node or OR-Node. An AND-Node inside MT is created if, for a given state s_s of P_s, or s_c of P_c, there are k > 1 outgoing transitions that each requires a message to be triggered (transitions with labels + m₁,+ m₂, ...,+ m_k). On the other hand, an OR-Node refers to a deadlock case. This type of node has either two outgoing edges corresponding to two messages, which are engaged in the deadlock, or one edge, in the case that one of the services SP or SC is in a final state and the other requires the message on the label of the edge. The label of an OR-Node consists of the name of a pair of states, in which a deadlock occurs during the interaction of services. The label of outgoing edges of an OR-Node takes the name of messages that are engaged in the deadlock. See Figure 7 for the general representation of a MT, in which both nodes of types AND-Node and OR-Node are present. In this perspective, MT in Figure 6(b) is a subtree that shows the messages that are engaged in the deadlock that occurs in state $\langle$ 1, 1' $\rangle$ of the adapter. The advantage of MT is that it represents all possible deadlocks in a concise form, and allows the developer to make informed decisions.

3 Evidences

Determining if a given message m engaged in a deadlock could be constructed in the adapter or not is a very difficult task, and depends on many factors including the state in which the interaction between two services is, and also the semantics of messages. In the following, we discuss some of the evidences that can be used for identifying messages in common deadlocks appear in Web services interactions:

Interface-based inference. For a given message m from interface I, which is a label of an edge in MT, we can perform the following analysis on interface I to find indications that might help to construct m:

(i) Messages with empty content. By inspecting the schema of message m, we may observe that it is an empty message. This is specially the case for some acknowledgment and response messages.

(ii) Analyzing the messages of the same interface. If the data structure of a message m is not empty, then we analyze the relationship between data structure m, and those of all messages m₁, ..., m_k, k > 0, of the same interface I, that has been received before the deadlock point in the adapter. If elements of m could be matched to elements of any of above messages, we may be able to construct this message from those messages. This technique is also helpful on some response and acknowledgment messages that return some order-number, serial-number that is previously exchanged between services. In this case, the probability that m could be constructed is considered as the similarity score of elements of m to existing messages in the adapter from interface I.

(iii) Enumeration with default. In some schema definitions, e.g., in Google APIs, the expected values for some data types are given through enumeration. It may be possible for the adapter to continue interactions with a service using some default values from such a list.

(iv) Acquiring m through operation invocation. In some cases, we may observe that message m from interface I₁ that is required in MT has a mapping to a message m' from the partner interface I₂. And, m' is the output message of operation o $\langle$ m'', m' $\rangle$ with input message m''. And, we observe that we can construct m'' from the messages that already have been received by the adapter. This allow to get m through invoking operation o. The weight of m in MT is a product of matching score of m and m', and also the matching score of m'' to messages in the adapter.

Log based value/type inference. If the log of previous interactions of the service that we are developing the adapter in that service side is available, e.g., in case of CO_Client, it keeps the log of its previous interactions with XWebCheckout. Then, this log is used to infer the data types/values exchanged for specific elements in the required message m. For example, we may observe that a fixed value for data elements of m is exchanged, or it is part of previous messages exchanged between services. As another example, we used this evidence to adapt a client of version 1 of XWebCheckout service to use version 2 of this service. The main difference between these two versions is in the schema definitions: version 1 uses simple data types and all inputs are defined as strings, while in version 2 complex XML types are used to declare the expected schemas. Analysis of log of client made it clear that exchanged contents in messages of version 1 of the service are in XML format and conform to the XML schemas in the second version, with few exceptions. However, by considering only the schema definitions we could not make such an inference.

Developer Input. As discussed, determining if a given message m could be constructed in the adapter or not is very difficult and depends on many factors that may not be captured by any of above evidences. For this reason, we also rely on the input by the adapter developer to identify if it is feasible to provide a mapping function to construct a message m in the adapter or not.

4 Analyzing Mismatch Trees Using Evidences

As discussed before, we assign a weight to each edge in the tree based on the analysis of available evidences to show the probability that the message on the edge could be constructed. So, the complete representation of each message on edges of MT is in the format of <P,m,>, in which P denotes the protocol name, m the message name, and $\rho$ is the probability that message m can be constructed based on evidences (Figure 7). This probability takes values between 0 and 1, in which value 0 specifies that we do not have any indication that this message could be constructed, while 1 suggests that this message could be constructed based on available evidences. At this stage, we end up with a weighted tree, in which each edge has a weight between 0 and 1. For each deadlock case in this weighted MT (i.e., for each subtree corresponding to one children of the root node of MT), we are interested to find the shortest path, i.e., with the minimum number of messages, that maximizes the probability that the deadlock could be resolved by constructing messages that are engaged in the deadlock. The probability that we can construct one message is independent from the probability of the construction of any other messages. So, we can define the probability that each deadlock case is resolved using the set of messages in a specific path as the product of the weights of each edge in that path. Then, we rank different paths in each subtree (corresponding to each deadlock case). The result of this ranking is a list, in which the top path corresponds to the best shortest path in the weighted subtree, that we suggest to the adapter developer.

5 Mismatch Tree for the Running Example

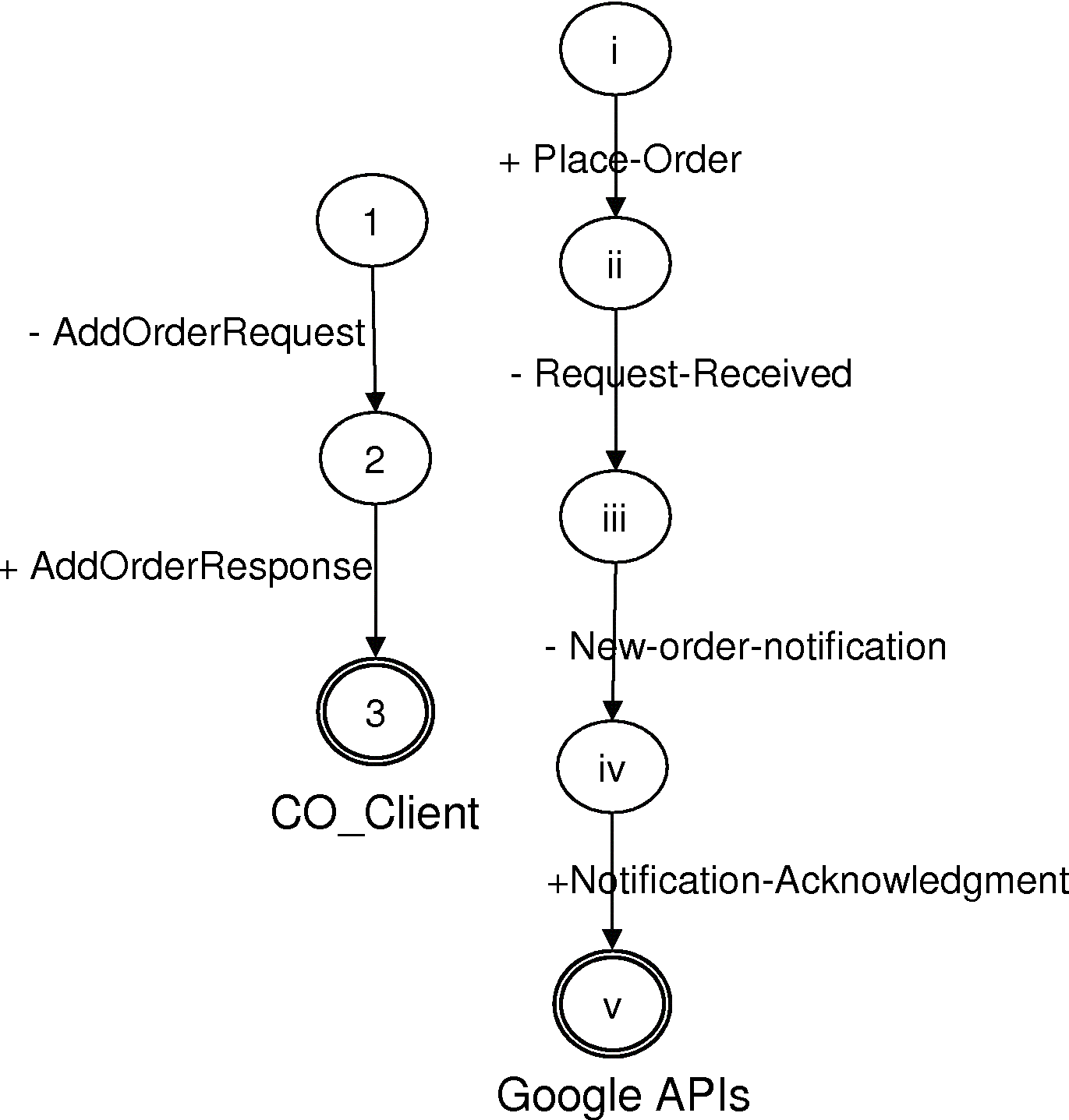

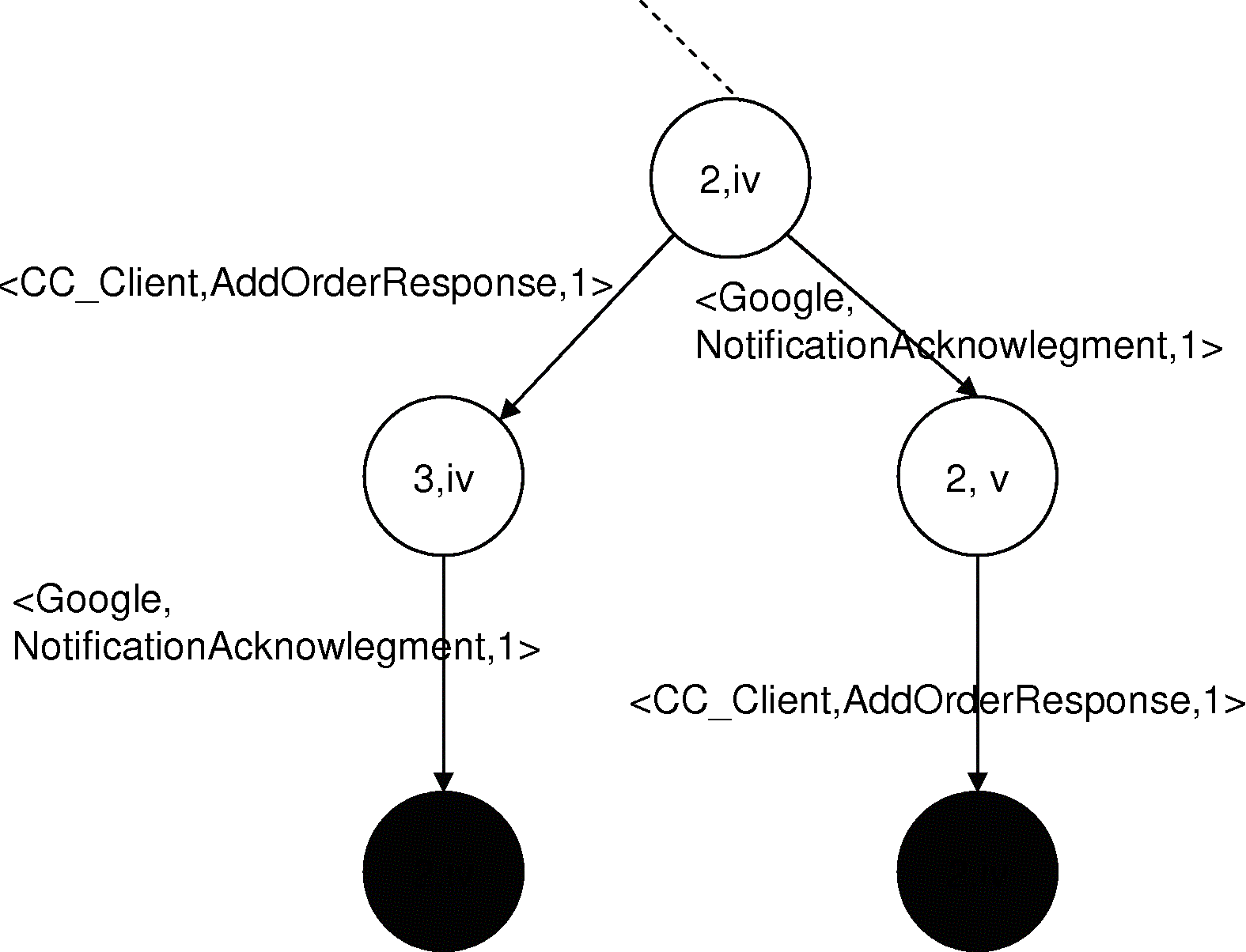

Let's consider very simple protocols of CO_Client and Google Checkout depicted in Figure 3. In Figure 4 we concluded that Place-Order message is a plausible matching for AddOrderRequest message in CO_Client. However, there is no matchings for messages New-order-notification and Request-Received in CO_Client, and also no matching for AddOrderResponse in Google Checkout. Figure 8 shows the mismatch tree MT generated for these two protocols. The first mismatch with deadlock occurs in state $\langle$ 2, iv $\rangle$ between messages AddOrderResponse and Notification-Ack. If a mapping for either of these messages could be provided, then there will be another deadlock case which shows the other message is still required (in states $\langle$ 3, iv $\rangle$ and $\langle$ 2, v $\rangle$ ). Since Request-Received and New-order-notification are of type of extra messages they do not create any deadlock, but the adapter could receive them. However, after receiving Notification-acknowledgment, it needs to send message Notification-Ack to the Google. This has been captured by the mismatch tree.

To assign weight to different paths of MT in Figure 8, in the first step, we analyzed the WSDL interfaces of CO_Client and Google Checkout. Notification-acknowledgment has a serial-number element as its content. Considering the relationship between these messages and New-order-notification reveals that it is an element of this message that is sent by Google Checkout, and so we estimate that the probability of provision of this content as 1. In case of CO_Client, inspecting the content of message AddOrderResponse shows that it is an empty message. So, in this special case, the probability of construction of this messages is also estimated to be 1. Based on this analysis, the adapter developer can create the required mappings in IM to resolve the deadlock.

To summarize, the adapter simulation process in the algorithm 2 generate one of the following results for any given protocols P_s and P_c and interface mappings IM: (i) it outputs that there is no adaptation required, and protocols successfully interact (if there is no protocol-level mismatches); (ii) adaptation is required, but there is no interactions with deadlock (there are mismatches of type of unspecified reception), and generates the adapter protocol (P_A); (iii) the adaptation is required, and there are interactions with deadlock. For such interactions, the mismatch tree MT is generated for further analysis (line 17). Based on analysis of MT the developer may updates interface mappings IM to resolve some deadlocks, or tag some of the deadlocks as non-resolvable. In the next run of the algorithm, it removes all the deadlock states tagged as non-resolvable.

6 Implementation and Experiments

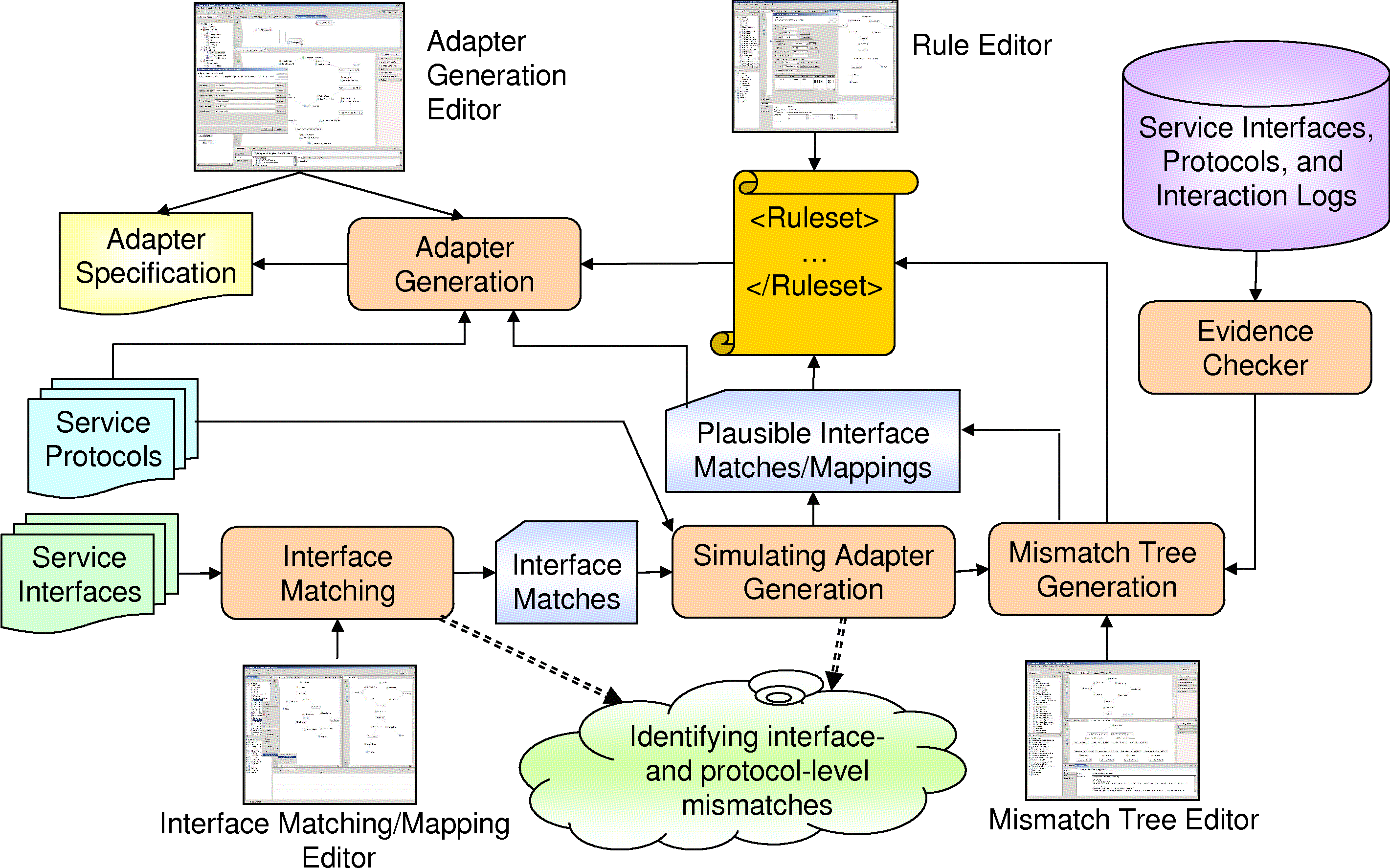

The approach presented in the paper has been implemented inside IBM WID (WebSphere Integration Developer), which is an Eclipse-based IDE for development of composite applications based on SCA (Service Component Architecture) architecture [26], and in the context of Wombat project for analysis of service interactions [19]. Figure 9 shows the architecture of the tool. Services to be adapted and the generated adapter are implemented as SCA components and the interface mapping component uses InterfaceMap components in IBM WID to implement mappings. The mismatch tree editor is implemented by extending the state machine editor in WID to represent mismatch trees, and the backend to check for evidences. Mapping functions could be implemented as XQuery, XSLT or even plain Java functions. Interface mapping editor allows developers to create new and also edit discovered mappings. The interface matching component is implemented on top of COMA++ tool [9] (http://dbs.uni-leipzig.de/de/Research/coma.html).

Our tool also supports defining rules that specify how to use interface mappings during the adaptation. For example, if two or more mappings are specified for a given message m, rules specify where to use which one of the mappings, or to define generalized forms of actions of adapter. For example, by default after sending a message m, all set of input messages in X that are used to build m and m itself is inactivated. However, the developer can define rules to allow a given mapping to be used in any state that is needed during adapter generation and not to be inactivated. Rules are represented in XML and implemented following the EMF (Eclipse Modeling Framework) in Eclipse. The rule editor allows the developers to edit discovered rules or create new rules for a pair of protocols. The adapter generation process accepts the rule definitions as the input. Finally, all algorithmic parts are implemented using Java 1.5.

The result of application of the tool on matching CO_Client (in fact XWebCheckout) and Google Checkout APIs for other functionalities (order payment, shipping, and cancellation) shows that the interactions of the two services results in deadlocks, and the mismatch tree generation and ranking approach is very useful in enabling the adaptation between the two services. In addition, we have applied the tool on a number of other service interfaces and business protocols taken from the real-world scenarios, e.g., an ATM/Bank interface and protocol definitions [19], mapping a client of version 1 of XWebChecout service to work with version 2 of the service and the interface and protocol definitions of a purchase order service taken from [1].

The lessons learned from these experiments include: (i) in many services, only a subset of elements of the schema defined for each message is essential for the proper functioning of the service. Functionality-wise similar services often declare such essential information in their interfaces. Our interface matching methodology proved effective in finding the matching between messages, and between data types of each message for such parts; (ii) such functionality-wise similar services often define different ordering constraints on the message exchange, and mainly the differences are of type of signature mismatch or having extra/missing messages in service interfaces. This later case often leads the interaction to deadlock.

7 Related Work and Conclusion

The problem of adapting interactions models in software has been studied in different contexts, and more notably in the area of software components (e.g., [29,6,17,13]) and also recently in Web services [3,12,11,18,7]. There are mainly two schools of work in this area: The first school of approaches propose techniques for automatic generation of adapters [29,6]. All of them tackle ordering mismatch with unspecified reception, and remove all interactions that lead to deadlock from the adapter (hence, deadlock situations are not in fact managed). In addition, they assume there is no mismatch at the interface level, or that interface mappings are provided. The other school of approaches provide classes of possible mismatches between interactions models and then propose adaptation templates based on design patterns or adaptation operations to resolve the mismatches (e.g., [14,11,18]). However, in all of these approaches developers need to manually inspect the protocols and identify the mismatches.

At the interface level there are two main approaches in the prior art: (i) approaches for finding similar operations in a repository of service descriptions like UDDI to a given textual description or to some service operation signature, e.g., [10,27]. However, the objective of these approaches is not to find the exact mapping between elements of messages (and operation), but to find a measure of their similarity typically based on information retrieval techniques. In fact, the proposed techniques are not applicable in interface mapping context as we have only two service interfaces to map, while e.g., Woogle [10] proposes a clustering-based approach that requires a repository of service descriptions to be applied as a learning phase. The second class of prior art propose approaches for adapting a service WSDL interface to incompatible clients, e.g., [12,23]. In [23] authors assume that interfaces of all services that provide a similar functionality are derived from a common base interface using limited number of derivation actions that allow for adding or removing parameters to operations, however the operation names remain the same. We do not make any assumptions on service interfaces. We build on top of schema mapping approaches [24,9] and we extend them by considering protocol definitions to identify the set of relevant mappings in service interactions. In [12], the author proposes defining service views on top of WSDL interfaces by altering WSDL interfaces to enable interactions with incompatible services, but no automatic support for generation of views is proposed.

Semantic Web-based approaches based on ontologies also provide an attractive alternative for Web service matching (e.g., [1,22]) and mediation [28]. However, the limited availability of ontologies in real-world Web services makes it hard to apply these techniques at this stage. Commercial products, e.g., IBM WID, BEA WebLogic or Microsoft Biztalk also provide facilities for manual mediating between service interface and protocols, however, they offer limited automated support.

In summary, the innovative contributions of this paper lie in, first, providing automated support for identification and resolution of interface-level mismatches. We propose a method to identify parameters of mapping functions that resolve those mismatches. Second, we provide automated support for adapting behavioral models in presence of deadlock. Tackling this type of mismatch greatly expands the range of syntactically incompatible but adaptable services before automatically concluding that such services are not adaptable. We showed this using a number of examples and experiments (a case study) in the paper. In doing this, we exploit domain-specific knowledge available in the context of Web services, e.g., in WSDL interfaces, protocol specifications, and execution logs, if available, to provide above mentioned automated support.

We believe that these results are promising and encouraging. We have experienced that the problem is real and pressing, and the solution does considerably simplify adapter development. As future work, we are planning to extend the work in several directions including: (i) performing more real-world experiments in SOA applications to measure the overhead of adapter generation approach as compared to developing new clients, and to identify circumstances under which adaptation is superior to new developments, (ii) studying the performance overhead of adapters as standalone SCA components in an SOA application environment versus other deployment options like aspect-oriented approaches.
