Why are cybercommunities important?. Searching for social structures in the World Wide Web has emerged as one of the foremost research problems related to the breathtaking expansion of the World Wide Web. Thus there is a keen academic as well as industrial interest in developing efficient algorithms for collecting, storing and analyzing the pattern of pages and hyperlinks that form the World Wide Web, since the pioneering work of Gibson, Kleinberg and Raghavan [19]. Nowadays many communities of the real world that want to have a major impact and recognition are represented in the Web. Thus the detection of cybercommunities, i.e. set of sites and pages sharing a common interest, improves also our knowledge of the world in general.
Cybercommunities as dense subgraphs of the web graph. The most popular way of defining cybercommunities is based on the interpretation of WWW hyperlinks as social links [10]. For example, the web page of a conference contains an hyperlink to all of its sponsors, similarly the homepage of a car lover contains links to all famous car manufactures. In this way, the Web is modelled by the web graph, a directed graph in which each vertex represents a webpage and each arc represents an hyperlink between the two corresponding pages. Intuitively, cybercommunities correspond to dense subgraphs of the web graph.
An open problem. Monika Henzinger in a recent survey on algorithmic challenges in web search engines [26] remarks that the Trawling algorithm of Kumar et al. [31] is able to enumerate dense bipartite graphs in the order of tens of nodes and states this open problem: ``In order to more completely capture these cybercommunities, it would be interesting to detect much larger bipartite subgraphs, in the order of hundreds or thousands of nodes. They do not need to be complete, but should be dense, i.e. they should contain at least a constant fraction of the corresponding complete bipartite subgraphs. Are there efficient algorithms to detect them? And can these algorithms be implemented efficiently if only a small part of the graph fits in main memory?
Theoretical results. From a theoretical point of view, the dense subgraph problem, i.e. finding the densest subgraph with vertices in a given graph, is clearly NPHard (it is easy to see by a reduction from the maxclique problem). Some approximation algorithms with a non constant approximation factor can be found in the literature for example in [24,14,13], none of which seem to be of practical applicability. Studies about the inherent complexity of the problem of obtaining a constant factor approximation algorithm are reported in [25] and [12].
Some heuristic methods. In the literature there are a few heuristic methods to extract communities from the web (or from large graphs in general). The most important and ground breaking algorithm is due to Kumar et al. in [31] where the authors aim at enumerating complete bipartite subgraphs with very few vertices, then extend them to dense bipartite subgraphs by using local searches (based on the HITS ranking algorithm). The technique in [31] is aimed at detecting small complete bipartite communities, of the order of ten vertices, while the subsequent community expansion guided by the hub and authority scores of the HITS algorithm (regardless of further density considerations). In [16] Flake, Lawrence, Giles and Coetzee use the notion of maximum flow to extract communities, but they are also limited to communities for which an initial seed node is available. In [20] Gibson, Kumar and Tomkins use a new sampling method (shingling) based on the notion of minwise independent permutations, introduced in [7], to evaluate the similarity of neighborhoods of vertices and then extract very large and very dense subgraphs of the webhost graph. This technique is specifically aimed to detecting very large and dense subgraphs, in a graph, like the webhostgraph of quite large average degree. The authors in [20, Section 4.2] remark that (with a reasonable set of parameters) the shingling method is effective for dense subgraphs of over 50 nodes but breaks down below 24 nodes. Thus there is room for improvements via alternative approaches.
Our contribution. In this paper we propose two new simple characterization of dense subgraphs. From these characterization we derive a new heuristic, which is based on a twostep filtering approach. In the first filtering step we estimate efficiently the average degree and the similarity of neighbor sets of vertices of a candidate community. This initial filtering is very efficient since it is based only on degreecounting. The second filtering step is based on an iterative refinement of the candidate community aimed at removing small degree vertices (relative to the target average density), and thus increasing the average degree of the remaining ``core`` community. We test our algorithm on very large snapshots of the web graph (both for the global webgraph and for some large national domains) and we give experimental evidence the effectiveness of the method. We have coupled the community extraction algorithm with a clustering tool that groups the communities found into homogeneous groups by topic and provide a useful user interface for exploring the community data. The user interface of the Community Watch system is publicly available at http://comwatch.iit.cnr.it. To the best of our knowledge this is the first publicly available tool to visualize cybercommunities.
Target size. In our method the user supplies a target threshold and the algorithm lists all the communities found with average degree at least . Naturally the lower the value the more communities will be found and the slower the method. In our experiments our method is still effective for values of quite close to the average degree of the webgraphs (say within a factor 2), and communities of a few tens of nodes. Our heuristic is particularly efficient for detecting communities of large and medium size, while the method in [31] is explicitly targeted towards communities with a small complete bipartite coreset.
Final applications. The detection of dense subgraphs of the webgraph might serve as a stepping stone towards achieving several broader goals. One possible goal is to improve the performance of critical tools in the WWW infrastructure such as crawlers, indexing and ranking components of search engines. In this case often dense subgraphs are associated with negative phenomena such as the Tightly Knit Community (TKC) effect [34], linkfarm spamming [23], and data duplication (mirroring) [2]. In this paper, following [33] we place instead the accent on the ``positive`` aspect of cybercommunities: our intent at the moment is to provide an exploratory tool capable of extracting a synthetic description of the current status and current trends in the social structure of the WWW.
Visualization of the Communities. Given a single dense community it is easy by manual inspection to gain some hint as to its general area of interest and purpose, however gaining insight on hundreds (or thousands) of communities can become a tiresome task, therefore we have coupled our densesubgraph extraction algorithm with a visualization tool that helps in the exploratory approach. This tool is based on the efficient clustering/labelling system described in detail in [17][18]. In nutshell from each community, using standard IR techniques, we extract a vector of representative words with weights related to the words frequencies (wordvector). A clustering algorithm is applied to the wordvectors and we obtain groups of communities that are homogeneous by topic, moreover a list of representative keywords for each cluster is generated so to guide the user to assess the intrinsic topic of each cluster of communities.
Mirrors and Linkfarms. Information retrieval on the WWW is complicated by the phenomenon of ``data replication`` (mirroring) and several forms of spamming (e.g. linkfarms). For mirrors, offline detection of such structures using the techniques in [2] implies pairwise comparisons of all (or most if some heuristic filtering is used) pairs of websites, which is an expensive computations. Linkfarm detection implies technique borderline with those used for community detection. In our context, however, efficiency and effectiveness of the community detection algorithm are not really impaired by such borderline phenomena. For this reason we do not attempt to filter out these phenomena before applying our algorithms. Instead we envision these steps (mirror detection and linkfarm detection) as a postprocessing phase in our Community Watch system. In particular since we perform efficiently both the community detection and community clustering we can apply mirror and linkfarm detection separately and independently in each cluster thus retaining the overall system scalability.
Given the hypertext nature of the WWW one can approach the problem of finding cybercommunities by using as main source the textual content of the web pages, the hyperlinks structure, or both. Among the methods for finding group of coherent pages based only on text content we can mention [8]. Recommendation systems usually collect information on social networks from a variety of sources (not only link structure) (e.g. [29]). Problems of a similar nature appears in the areas of social network analysis, citation analysis and bibliometrics, where however, given the relatively smaller data sets involved (relative to the WWW), efficiency is often not a critical issue [35].
Since the pioneering work [19] the prevailing trend in the Computer Science community is to use mainly the linkstructure as basis of the computation. Previous literature on the problem of finding cybercommunities using linkbased analysis in the webgraph can be broadly split into two large groups. In the first group are methods that need an initial seed of a community to start the process of community identification. Assuming the availability of a seed for a possible community naturally directs the computational effort in the region of the webgraph closest to the seed and suggests the use of sophisticated but computational intensive techniques, usually based of maxflow/mincut approaches. In this category we can list the work of [19,15,16,27,28]. The second group of algorithms does not assume any seed and aims at finding all (or most) of the communities by exploring the whole web graph. In this category falls the work of [31,30,36,32,20].
Certain particular artifacts in the WWW called ``link farms`` whose purpose is to bias searchengines pageranktype ranking algorithms are a very particular type of ``artificial`` cybercommunity that is traced using techniques bordering with those used to find dense subgraphs in general. See for example [37,3].
Abello et al. [1] propose a method based on local searches with random restarts to escape local minima, which is quite computational intensive. A graph representing point to point telecommunications with 53 M nodes and 170M edges is used as input. The equipment used is a multiprocessor machine of 10 200MHz processors and total 6GB RAM memory. A timing result of roughly 36 hours is reported in [1] for an experiment handling a graph obtained by removing all nodes of degree larger than 30, thus, in effect, operating on a reduced graph of 9K nodes and 320K edges. Even discounting for the difference in equipment we feel that the method in [1] would not scale well to searching for mediumdensity and mediumsize communities in graphs as large as those we are able to handle (up to 20M nodes and 180M edges after cleaning). Girvan and Newman [21] define a notion of local density based on counting the number of shortest paths in a graph sharing a given edge. This notion, though powerful, entails algorithm that do not scale well to the size of the webgraph. Spectral methods described in [9] also lack scalability (i.e. in [9] the method is applied to graphs from psychological experiments with 10K nodes and 70K edges).
A system similar in spirit to that proposed in this paper is Campfire described in [33] which is based on the Trawling algorithm for finding the dense core, on HITS for community expansion and on an indexing structure of community keywords that can be queried by the user. Our system is different from Campfire first of all in the algorithms used to detect communities but also in the final user interface: we provide a clustering/labelling interface that is suitable to giving a global view of the available data.
A directed graph consists of a set of vertices and a set of arcs, where an arc is an ordered pair of vertices. The web graph is the directed graph representing the Web: vertices are pages and arcs are hyperlinks.
Let be any vertices of a directed graph , if there exists an arc , then is an outlink of , and an inlink of . Moreover, is called a successor of , and a predecessor of . For every vertex , denotes the set of its successors, and the set of its predecessors. Then, the outdegree and the indegree of are respectively and . Let by any subset of , the successors and the predecessors of are respectively defined by: and . Observe that is possible.
A graph is called a complete bipartite graph, if can be partitioned into two disjoint subsets and , such that, for every vertex of , the set of successors of is exactly , i.e., . Consequently for every node its predecessor set is . Finally, let be the set of vertices that share at least one successor with : .
Two more useful definitions. Define for sets and the relation
when
,
for a constant .
Define for positive numbers the relation when
, for
a constant . When the constant is not important for the
discussion or it can be inferred from the context the subscript
is omitted.
The basic argument linking the (informal) notion of web communities and the (formal) notion of dense subgraphs is developed and justified in [31]. It is summarized in [31] as follows: ``Web communities are characterized by dense directed bipartite subgraph". Without entering in a formal definition of density in [31] it is stated the hypothesis that:``A random large enough and dense enough bipartite subgraph of the Web almost surely has a core", (i.e. a complete bipartite subgraph of size for some small integer values, and ). A standard definition of density, as used for example in [20], is as follows: a dense bipartite subgraph of a graph is a disjoint pair of sets of vertices, such that , for a real parameter . Note that is also a lower bound to the average outdegree of a node in . Similarly a dense quasiclique is a subset such that , for a real parameter , as in [1,14]. This notion of a core of a dense subgraph in [31] is consistent with the notion of density for values of large enough, where the notion of ``almost surely``, core, ``large enough", ``dense enough", must be interpreted as a function of . Our formulation unifies the notion of a dense bipartite subgraph and a clique as a pair of not necessarily disjoint sets of vertices, such that and . For two constants and . Our definition implies that in [20], and conversely, any dense subgraph following [20] contains a dense subgraph in our definition^{1}.
Thus a community in the web is defined by two sets of pages, the set of the centers of the community, i.e. pages sharing a common topic, and the set of the fans, i.e., pages that are interested in the topic. Typically, every fan contains a link to most of the centers, at the same time, there are few links among centers (often for commercial reasons) and among fans (fans may not know each other).
The definition of dense subgraph can be used to test if a pair of sets is a dense subgraph (both bipartite and clique). However it cannot be used to find efficiently a dense subgraph embedded in . In the following of this section we discuss a sequence of properties and then we will proceed by relaxing them up to the point of having properties that can be computed directly on the input graph . These properties will hold exactly (with equality) for an isolated complete bipartite graph (and clique), will hold approximately for an isolated dense graph, where the measure of approximation will be related to the parameter . However at the end we need a the final relaxation step in which we will consider the subgraphs as embedded in .
First of all, let us give an initial intuition of the reason why our heuristic might work. Let be a sparse directed graph, and let be a dense subgraph within . Then, let be any vertex of . Since is a dense subgraph by definition we have , and symmetrically . For values the pigeon hole principle ensures that any two nodes and of always share a successor in , thus , and, if every vertex of has at least a predecessor in , also . The main idea now is to estimate quickly, for every vertex of , the degree of similarity of and . In the case of an isolated complete bipartite graph , and . For an isolated dense bipartite graph, we have and . The conjecture is that when the dense bipartite graph is a subgraph of , and thus we have the weaker relationship , the excess is small compared to so to make the comparison of the two sets still significant for detecting the presence of a dense subgraph.
To gain in efficiency, instead of evaluating the similarity
of successor set, we will estimate the similarity of
outdegrees by counting. In a complete bipartite graph , we have
that
, therefore,
. The set of
vertices sharing a successor with is
, and moreover
. Passing from
relations among sets to relations among cardinalities we have
that:
, and the degree of
any node coincide with the average outdegree:
In a dense
bipartite graph, we still have
but now,
for every . Thus we can conclude that
For the difference tends to zero. Finally assuming that for a dense bipartite subgraph of the excesses and give a small contribution, we can still use the above test as evidence of the presence of a dense subgraph. At this point we pause, we state our first criterion and we subject it to criticism in order to improve it.
Unfortunately, this criterion 1 cannot be used yet in this form. One reason is that computing for every vertex of big enough outdegree in the web graph is not scalable. Moreover, the criterion is not robust enough w.r.t. noise from the graph. Assume that the situation depicted in figure 1 occurs: , induces a complete bipartite graph with , and each vertex of has one more predecessor of degree in . Then, , so that is far from , so will not be detected.
Because of the shortcomings of Criterion 1 we describe a second criterion that is more complex to derive but computationally more effective and robust. As before we will start with the case of the isolated complete bipartite graph. Consider a node , clearly , and , thus . Turning to the cardinalities: for a node , . Thus also the average value of all outdegrees for nodes in is . In formulae: given , ,
Next we average over all
by obtaining the following
equation: given ,
Finally since we have the equality:
Next we see how to transform the above equality for isolated
dense
graphs. Consider a node , now
, and for a node
,
. Thus we get the
bounds:
Thus the ratio of the two quantities is in the range . On the other hand . Therefore the difference of the two terms is bounded by , which is bounded by . Again for and the difference tends to zero.
Thus in an approximate sense the relationship is preserved for isolated dense bipartite graphs. Clearly now we will make a further relaxation by considering the sets and as referred to the overall graph , instead of just the isolated pair .
There are several advantages in using Criterion 2. The first advantage is that the relevant summations are defined over sets and that are encoded directly in the graphs and . We will compute in the second phase only for vertices that are likely to belong to a community. The second advantage is that the result of the inner summation can be precomputed stored and reused. We just need to store two tables of size (), one containing the values of , the other containing the indegrees. Thirdly, the criterion 2 is much more robust than criterion 1 to noise, since the outdegree of every vertex of is counted many times. For example, in the situation depicted in figure 1, we obtain the following result:
and .
Thus,
.
Finally, let be a vertex that satisfies the criterion 2, we construct explicitly the two sets and . Then, we extract the community contained in thanks to an iterative loop in which we remove from all vertices for which is small, and we remove from all vertices for which is small.
In figures 2 and 3 we give the pseudocode for our heuristic. Algorithm detects vertices that satisfy the filtering formula of criterion 2, then function computes and and extracts the community of which is a fan. This two algorithms are a straightforward application of the formula in the criterion 2.


Our algorithm can capture also partially overlapping communities. This case may happen when we have older communities that are in the process of splitting or newly formed communities in the process of merging. However overlapping centers and overlapping fans are treated differently, since the algorithm is not fully symmetric in handling fans and centers.

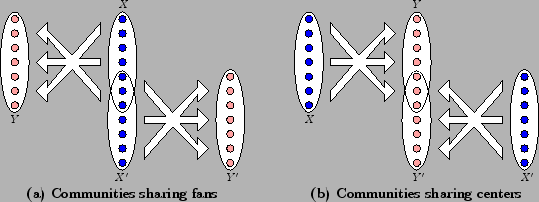

Communities sharing fans. The case depicted in Figure 4(a) is that of overlapping fans. If the overlap is large with respect to then our algorithm will just return the union of the two communities . Otherwise when the overlap is not large the algorithm will return two communities: either the pairs and , or the pairs and . So we will report both the communities having their fansets overlapping, but the representative fan sets will be split. The notion of large/small overlap is a complex function of the degree threshold and other parameters of the algorithm. In either case we do not miss any important structure of our data.
Communities sharing centers. Note that the behavior is different in the case of overlapping centers. A vertex can be a center of several communities. Thus, in the case depicted in Figure 4(b), if the overlap is big with respect to , then we will return the union of the two communities , otherwise we will return exactly the two overlapping communities and . In either case we do not miss any important structure of our data. Observe that the last loop of function removes logically from the graph all arcs of the current community, but not the vertices. Moreover, a vertex can be fan of a community and center of several communities. In particular it can be fan and center for the same community, so we are able to detect dense quasi bipartite subgraphs as well as quasi cliques.
We perform now a semiempirical complexity analysis in the standard RAM model. The graph and its transpose are assumed to be stored in main memory in such a way as to be able to access a node in time and links incident to it in time per link. We need extra storage per node to store indegree, outdegree, a counter TabSum, and a tag bit. Algorithm visits each edge at most once and performs operations for each edge, thus has a cost , except for the cost of invocations of the function. Potentially the total time cost of the invocations of is large, however experimentally the time cost grows only linearly with the number of communities found. This behavior can be explained as follows. We measured that less than 30% of the invocations do not result in the construction of a community (see Table 5), and that the inner refinement loop converges on average in less than 3 iterations (see Table 4). If the number of nodes and edges of a community found by for is proportional by a constant to the size of the bipartite subgraph then we are allowed to charge all operations within invocations of to the size of the output. Under these conditions each edge is charged on average a constant number of operations, thus explaining the observed overall behavior .
The algorithm we described, including the initial cleaning steps, can be easily converted to work in the streaming model, except for procedure that seems to require the use of random access of data in core memory. Here we want to estimate with a ``back of the envelope`` calculation the limits of this approach using core memory. Andrei Broder et al. [6] in the year 2000 estimated the size of the indexable web graph at 200M pages and 1.5G edges (thus an average degree about 7.5 links per page, which is consistent with the average degree 8.4 of the WebBase data of 2001). A more recent estimate by Gulli and Signorini [22] in 2005 gives a count of 11.5G pages. The latest indexsize war ended with Google claiming an index of 25G pages. The average degree of the webgraph has been increasing recently due to the dynamic generation of pages with high degree, and some measurements give a count of 40.^{2} The initial cleaning phase reduces the WebBase graph by a factor 0.17 in node count and 0.059 in the Edge count. Thus using these coefficients the cleaned web graph might have 4.25G nodes and 59G arcs. The compression techniques in [5] for the WebBase dataset achieves an overall performance of 3.08 bits/edge. These coefficient applied to our cleaned web graph give a total of 22.5Gbytes to store the graph. Storing the graph G and its transpose we need to double the storage (although here some saving might be achieved), thus achieving an estimate of about 45Gbytes. With current technology this amount of core memory can certainly be provided by state of the art multiprocessors mainframes (e.g IBM System Z9 sells in configurations ranging from 8 to 64 GB of RAM core memory).
By construction algorithms and return a list of dense subgraph (where size and density are controlled by the parameters and ). Using standard terminology in Information Retrieval we can say that full precision is guaranteed by default. In this section we estimate the recall properties of the proposed method. This task is complex since we have no efficient alternative method for obtaining a guaranteed ground truth. Therefore we proceed as follows. We add some arcs in the graph representing the Italian domain of the year 2004, so to create new dense subgraphs. Afterwards, we observe how many of these new ``communities'' are detected by the algorithm that is run blindly with respect to the artificially embedded community. The number of edges added is of the order of only 50,000 and it is likely that the nature of a graph with 100M edges is not affected.
In the first experiment, about detecting bipartite communities, we introduce dense bipartite subgraphs. More precisely we introduce bipartite subgraphs for each of the categories representing all possible combinations of number of fans, number of centers, and density over a number of fans is chosen in ; number of centers chosen in ; and density randomly chosen in the ranges (low), (medium), and (high).
Moreover, the fans and centers of every new community are chosen so that they don't intersect any community found in the original graph nor any other new community. The following table (Table 1) shows how many added communities are found in average over experiments. For every one of the types, the maximum recall number is .
# Centers  80  0  5.2  9.6  10  1.2  8.4  9.7  10  5.7  8.6  9.5  9.8
40  0  5.4  9.5  9.9  0.7  8  9.7  9.9  5.4  8.6  9.7  9.8
20  0  2.7  5.4  6  0.9  7.9  9.6  9.9  4.6  8.4  9.6  9.9
10  0  0  0  0  0.1  0.8  1.9  3.2  3.3  6.5  9  9.7
10  20  40  80  10  20  40  80  10  20  40  80
# of Fans  # of Fans  # of Fans
Low density  Med. density  High density
In the second experiment, about detecting cliques , we introduce ten cliques for each of classes representing all possible combinations over: number of pages in , and density randomly chosen in the ranges , , and . The following table (Table 2) shows how many such cliques are found in average over experiments. Again the maximum recall number per entry is 10.
The cleaned .it 2004 graph used for the test has an average degree roughly 6 (see Section 6). A small bipartite graph of 10by10 nodes or a small clique of 10 nodes at 50% density has an average degree of 5. The breakdown of the degreecounting heuristic for these low thresholds is easily explained with the fact that these small and sparse communities are effectively hard to distinguish from the background graph by simple degree counting.
In this section we apply our algorithm to the task of extracting and classifying real large communities in the web.
For our experiments we have used data from The Stanford WebBase project [11] and data from the WebGraph project [5,4]. Raw data is publicly available at http://law.dsi.unimi.it/. More precisely we apply our algorithm on three graphs: the graph that represents a snapshot of the Web of the year 2001 (M pages and G links); the graph that represents a snapshot of the Italian domain of the year 2004 (M pages and G arcs); the graph that represents a snapshot of the United Kingdom domain of the year 2005 (M pages and G links).
Since we are searching communities by the study of social links, we first remove all nepotistic links, i.e., links between two pages that belong to the same domain (this is a standard cleaning step used also in [31]). Once these links are removed, we remove also all isolated pages, i.e., pages with both outdegree and indegree equal to zero. Observe that we don't remove anything else from the graph, for example we don't need to remove small outdegree pages and large indegree pages, as it is usually done for efficiency reasons, since our algorithm handles these cases efficiently and correctly. We obtain the reduced data sets shows in Table 3.
Web 2001  M pages  M links  av deg 3
.it 2004  M pages  M links  av deg 6
.uk 2005  M pages  M links  av deg 11

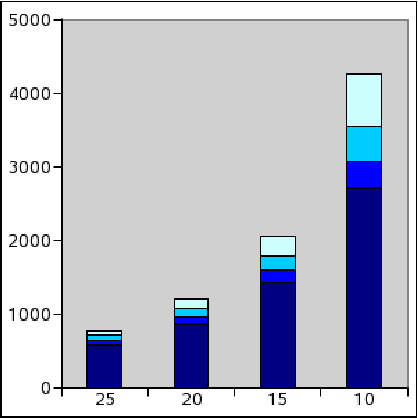

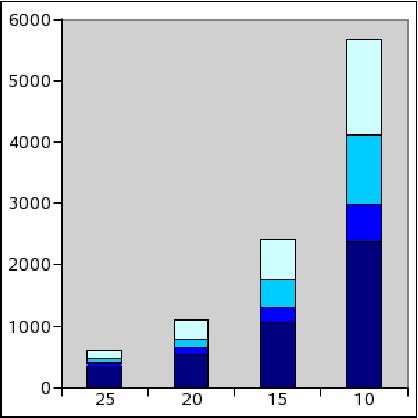

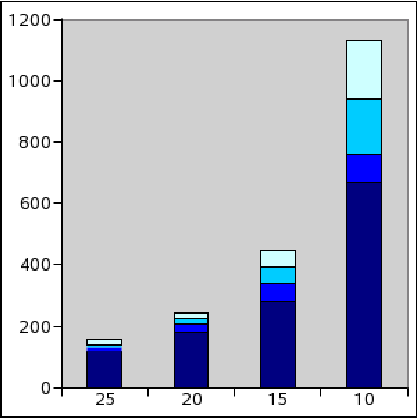

Figure 5 presents the results obtained with the three graphs presented before. The axe shows how many communities are found, and the axe represents the value of the parameter . Moreover communities are partitioned by density into four categories (shown in greyscale) corresponding to density intervals: [1,0.75], , , .
Table 4 reports the time needed for the experiments with an Intel Pentium IV Ghz single processor computer using 3.5 GB RAM memory. The data sets, although large, were in a cleverly compressed format and could be stored in main memory. The column ``# loops'' shows the average number of iterative refinement done for each community in Algorithm . Depending on the fan out degree threshold, time ranges from a few minutes to just above two hours for the most intensive computation. Table 5 shows the effectiveness of the degreebased filter since in the large tests just only to of the invocations to do not return a community. Note that this falsepositive rate of the first stage does not impact much on the algorithm's efficiency nor on the effectiveness. The false positives of the first stage are caught anyhow by the second stage.
Interestingly in Table 7 it is shown the coverage of the communities with respect to the nodes of sufficiently high degree. In two national domains the percentage of nodes covered by a community is above for national domains, and just below for the web graph (of 2001). Table 6 shows the distribution of size and density of communities found. The web 2001 data set seems richer in communities with few fans (range [1025]) and poorer in communities with many fans (range ) and this might explain the lower coverage.
Web 2001  Italy 2004  Uk 2005
Thresh.  # com.  # loops  Time  # com.  # loops  Time  # com.  # loops  Time
10  5686  2.7  2h12min  1099  2.7  30min  4220  2.5  1h10min
15  2412  2.8  1h03min  452  2.8  17min  2024  2.6  38min
20  1103  2.8  31min  248  2.8  10min  1204  2.7  27min
25  616  2.6  19min  153  2.8  7min  767  2.7  20 min
Web 2001  Italy 2004  Uk 2005
Thresh.  Num.  perc.  Num.  perc.  Num.  perc.
10  364  6%  34  3%  377  8%
15  135  5%  24  5%  331  14%
20  246  18%  24  9%  526  30%
25  148  19%  4  3%  323  30%
Table 6 shows how many communities are found with the equal to , in the three data sets in function of number of fans, centers, and density. Low, medium and high densities are respectively the ranges , , and .
Web 2001  5686 communities found at t=10


Italy 2004  1999 communities found at t=10


United Kingdom 2005  4220 communities found at t=10

Web 2001  Italy 2004  Uk 2005
Thresh.  # Total  # in Com.  Perc.  # Total  # in Com.  Perc.  # Total  # in Com.  Perc.
10  984290  581828  59%  3331358  3031723  91%  4085309  3744159  92%
15  550206  286629  52%  2225414  2009107  90%  3476321  3172338  91%
20  354971  164501  46%  1761160  642960  37%  2923794  2752726  94%
25  244751  105500  43%  487866  284218  58%  2652204  2503226  94%
The compressed data structure in [5] storing the web graph does not hold any information about the textual content of the pages. Therefore, once the list of url's of fans and centers for each community has been created, a nonrecursive crawl of the WWW focussed on this list of url's has been performed in order to recover textual data from communities.
What we want is to obtain an approximate description of the community topics. The intuition is that the topic of a community is well described by its centers. As good summary of the content of a center page we extract the text contained in the title tag of the page. We treat fan pages in a different way. The full content of the page is probably not interesting because a fan page can contain different topics, or might even be part of different communities. We extract only the anchor text of the link to a center page because it is a good textual description of the edge from the fan to a center in the community graph. For each community we build a weighted set of words getting all extracted words from centers and fans. The weight of each word takes into account if a word cames from a center and/or a fan and if it is repeated. All the words in a stop word list are removed. We build a flat clustering of the communities. For clustering we use the kcenter algorithm described in [18,17]. As a metric we adopt the Generalized Jaccard distance (a weighted form of the standard Jaccard distance).
This paper focusses on the algorithmic principles and testing of a fast and effective heuristic for detecting largetomedium size dense subgraphs in the web graph. The examples of clusters reported in this section are to be considered as anecdotical evidence of the capabilities of the Community Watch System. We plan on using the Community Watch tool for a fullscale analysis of portions of the Web Graph as future research. In Table 8 we show some high quality clusters of community found by the Community Watch tool in the dataset UK2005 among those communities detected with threshold (767 communities). Further filtering of communities with too few centers reduces the number of items (communities) to 636. The full listing can be inspected by using the Community Watch web interface publicly available at http://comwatch.iit.cnr.it.
Cl. ID  Cl. Keywords  # Comm.  # Rel. Comm.  Prevalent Type
1  poker (0.66) casino (1.0) games (0.80)  (8)  8   gambling
2  phone (0.71) nokia (1.0) motorola (0.31)  (17)  17   mobile phones
10  men (0.15) lingerie (0.16) women (0.23)  (14)  14   clothing/underware
14  antique (1.0) auction (0.11) search (0.19)  (5)  4   antiques
22  car (1.0) hire (0.29) cheap (0.13)  (25)  20   car sales/rent
25  hotel (0.65) holiday (1.0) travel (0.22)  (36)  34   turism/travel
27  delivery (0.31) flowers (1.0) gifts (0.66)  (8)  8   gifts and flowers
31  credit (0.54) loans (1.0) insurance (0.56)  (36)  28   financial services
32  city (0.59) council (1.0) community (0.31)  (7)  6   city councils
In this paper we tackle the problem of finding dense
subgraphs of the webgraph. We propose an efficient heuristic
method that is shown experimentally to be able to discover
about of
communities having about 20 fans/centers, even at medium
density (above ).
The effectiveness increases and approaches for larger
and denser communities. For communities of less than 20
fans/centers (say 10 fans and 10 centers) our algorithm is
still able to detect a sizable fraction of the communities
present (about )
whenever these are at least dense. Our method is effective for a medium
range of community size/density which is not well detected by
the current technology. One can cover the whole spectrum of
communities by applying first our method to detect large and
medium size communities, then, on the residual graph, the
Trawling algorithm to find the smaller communities left. The
efficiency of the Trawling algorithm is likely to be boosted by
its application to a residual graph purified of larger
communities that tend to be rediscovered several times. We
plan the coupling of our heuristic with the Trawling algorithm
as future work. One open problem is that of devising an
efficient version the
in the data stream model
in order to cope with instances of the webgraph stored in
secondary memory. This feature is important when a limited
amount of core memory is available.
