Estimating the Cardinality of RDF Graph Patterns

^{1}Angela Maduko, ^{1}Kemafor Anyanwu, ^{2}Amit Sheth^{
3}Paul
Schliekelman

^{1}Department of Computer Science

^{3}Department of Statistics

{maduko, anyanwu}@cs.uga.edu,
pdschlie@stat.uga.edu

^{2}Kno.e.sis Center

Department of Computer
Science and

amit.sheth@wright.edu

**ABSTRACT**

Most RDF query languages allow for graph structure
search through a conjunction of triples which is typically processed using join
operations. A key factor in optimizing joins is determining the join order
which depends on the expected cardinality of intermediate results. This work
proposes a pattern-based summarization framework for estimating the cardinality
of RDF graph patterns. We present experiments on real world and synthetic
datasets which confirm the feasibility of our approach.

**Categories and Subject
Descriptors**

H.2.4 [**Systems**]: *Query processing*

**General Terms**

Management, Performance.

**Keywords**

*RDF Query Processing, RDF Semantic Summary,
RDF Structural Summary, *Statistical
Summary*,
Pattern *Cardinality
Estimation.

Most RDF query languages
allow for graph structure search through a conjunction of triples [3], often processed using join operations. A key step in
join query optimization is determining the join order, which depends on the
expected size of intermediate results. For example, to detect a basic potential conflict of interest
in the paper review process of a conference, one may search for PC members who
are authors of submitted papers. Figure
1a and b show the SPARQL expression for this query
(namespaces are omitted) and its graph structure (pattern). The query requires
three join operations. One order first finds all reviewers who are authors of
submitted papers, then the result is joined to the set of papers submitted to
“WWW”. Figure
1d, e and f show the possible ways processing may
begin. The optimal join order requires good estimates of the cardinality of
these patterns from a summary of the frequency distribution of patterns. Also,
a summary that is seamless across RDF systems is desirable. This work is a
first step towards addressing this problem. We focus on structure queries with
no variables on the edges (as in Figure
1a) which are useful in real applications. This work
addresses the problem stated as: *Given a space budget B and RDF schema graph
G _{S} and instance graph G_{I}, summarize the frequency
distribution of patterns in G_{I} to fit B for obtaining good estimates
of the frequencies of patterns. *We propose and evaluate three techniques
which differ in terms of the value/size tradeoff made during summarization.

In our graph model for RDF, nodes denote subjects or objects of schema (instance) triples while edges denote the predicates relating the respective subject and object nodes.

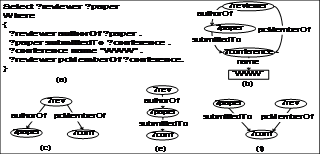

**Figure
1****: A graph pattern query and its sub-graph
patterns.**

2.1 Pattern Sequencialization

To summarize the frequency distribution of
patterns, we desire a generic representation for all embeddings of a query
pattern. To do this, we summarize the Schema graph to contain all patterns that
exist and may exist in the RDF instance graph. This summary which we call the RDF *Semantic and Structural Summary *(G_{SSS})
extends the RDF Semantic Summary [1]. We adopt the Minimum DFS Code (MDC) [4] of a pattern as its canonical label. Simply put, if
all edges of a graph are assigned labels from a finite set of labels with a
total order, the MDC of the graph is the lexicographically smallest sequence of
edge labels obtained by performing a DFS traversal of the graph. (See [4] for details). We
assign a 5-tuple <i, j, g(*l*),
h(u), h(v)> to each edge e = (u, v) labeled *l*, where i and j are the DFS discovery
times of u and v, h maps u/v to the number of its G_{SSS}
node while g maps *l* to the number of the G_{SSS} edge of
the same label.

2.2 Pattern Cardinality Estimation

Given a query pattern G_{Q},
we first validate G_{Q} in G_{SSS} to ensure it existed in
the instance graph. If so, we obtain its representation G_{QS}. Next, we check if the summary contains G_{QS}.
If so, we return its cardinality. If
not, we assume that minimal size super-patterns of a pattern are uniformly
distributed (the size of a pattern is the number of edges it contains).
Thus, we return a product of the
cardinality of its maximal size sub-pattern G_{QSM} and the
pattern growth rate of G_{QSM}. If G_{QSM} has D unique minimal size super-patterns (that
are not in the summary) with total cardinality N and if G_{QSM} has
cardinality C, the growth rate of G_{QSM}
given by N/CD is used to compensate for the frequency anti-monotone property
which may not always hold. If G_{QS} has multiple maximal
sub-patterns, we greedily select the one with the least growth rate.

2.3 Summary Construction

Our technique exploits 1)
the fact that patterns may have nearly the same frequencies as their
sub-patterns 2) prior knowledge of the importance of patterns. Thus the concept
of a *value *for patterns forms the
basis of our summary construction. The value of a pattern derives from its *observed *and *estimation *values. The observed value (tailored for different
applications) defines known information about pattern importance. Given a set
of patterns *P *= (P_{1}, P_{2},
…, P_{m}) with frequencies (P_{F1}, P_{F2}, …, P_{Fm}),
if P_{OI }= (P_{OI1}, P_{OI2}, …, P_{OIm}) is a
vector containing the prior information about patterns such that 0 £ P_{OIi
}£
1, we define the observed value of a pattern P_{i} (P_{OVi}) as
P_{OIi} ´
max_{j}{P_{Fj}}. The estimation value of a pattern defines the
number of its minimal size super-patterns whose cardinalities are estimable
from its cardinality within an e error. We derive e using an *exponential increase/logarithmic decrease*
approach to refine an initial small e until we obtain a set *PS* such that the total size of patterns in *PS* meets the budget and their total estimation value is at least
the total size of patterns not in *PS*.
Based on the observed and estimation values, we value patterns as follows: Let *P *= (P_{1}, P_{2}, …, P_{m})
be a set of patterns, let P_{EVmax} and P_{Fmax} be the maximum
of the expected values and frequencies of patterns in *P *respectively. Given a constant c Î [0, 1] and an indicator
variable *i* that takes the value 1 if
P_{OVi} ³
c ´ P_{Fmax} and 0 otherwise,
the value of any pattern P_{i} is given by:

P_{Vi} = (1 + P_{EVi})(1 + P_{OVi})
+ *i*(c ´ P_{Fmax }´ P_{EVmax})

The additive constants in the first term of the equation ensure that the value of a pattern is non-zero when either its observed or estimation value is non-zero. The constant c in the second term allows the summary to be tuned to suit application needs by favoring some patterns.

Our
construction algorithm first generates all patterns of up to a fixed size d then
less valuable patterns are pruned until the budget is met. Given a budget B and vectors *P* = (P_{1}, P_{2}, …, P_{m}),
*P _{S}* = (P

**Optimal
Solution (OPT). **The optimal
solution maximizes åw_{i}P_{Vi} constrained on åw_{i}P_{Si} £ B, (w_{i} is an indicator variable whose value is 1 if P_{Si} is part of
the solution or 0 otherwise). We solve this problem using dynamic programming
by observing that:

_{}

V[m, B] is the maximal value of patterns with total size at most B.
Since this solution 1) may select lower valued patterns over higher ones and 2)
is NP-hard, we consider two greedy approximations.

**Maximal
Value Greedy Solution (MVG).**
Patterns are selected in decreasing order of value to favour less error
tolerant patterns.

**Maximal Unit Value Greedy Solution (MUVG). **Patterns are selected in decreasing order of
value per unit size.

We experimented on
real life (swetoDBLP [5]) and synthetic (Lehigh University Benchmark [2]) datasets which differ in the number and complexity
of patterns. For properties (#nodes, #edges, #edge labels, average degree,
#connected components (cc), min #edges in a cc, max #edges in a cc, size of
patterns (bytes)), we used SwetoDBLP with (95566, 120512, 31, »3,
135, 4, 106479, 227149) and LUBM2 with (38370, 113463, 12, »6,
1, 113463, 113463, 23878). (Excluding literal triples). We compared OPT,
MVG and MUVG using summary sizes of 5KB, 25KB and 50KB for SwetoDBLP and
scaled down sizes of 800B, 4KB and 8KB for LUBM2 (same proportion of ratio of
number of unique patterns to summary size). We also compared these with the Histogram-based solution (HS) of an RDF
Database system, but for smallest summaries since we could not control the summary size of HS. We used three
query workloads; 1) positive workload
for patterns with cardinalities > 0; 2) frequent workload for patterns with
cardinalities ³ 5000 and 3) negative workload for patterns with 0 cardinalities. Using
the absolute error metric |C_{i} – Ci¢|, (C_{i} and C_{i}¢ are
the true and estimated cardinalities), we cumulate the percentage of patterns
estimated with at most e error, e Î [0, E] where E is the maximum estimation error. We obtain pattern cardinalities for HS using
the *Explain *command, after
instructing the system to create detailed statistics for the datasets.

(b) (a)

Figure 2: Performances on (a) SwetoDBLP and (b) LUBM2

Figure 2a
shows the results for the 5KB summary of SwetoDBLP, for the positive workload.
HS performed worst with estimation error of at least 1024 for all patterns,
compared to 20% for OPT and MVG and about 35% for MUVG. OPT, closely followed
by MVG, had 100% accuracy and an error of at most 32 for 40% and 60% of the
patterns. OPT performed best overall. Figure 2b
shows the results for LUBM2. Due to the irregularity of LUBM2, the techniques
have larger estimation errors, but given the summary sizes used, their
performances are promising. For example, OPT performed best with 100% accuracy
on 60% of all patterns and an estimation error of at most 1024 for 10% of patterns
on the 8KB summary. We also obtained promising results for the frequent
workload on both datasets. For the negative workload, HS performed best on
SwetoDBLP with 100% accuracy for about 80% of patterns and worst on LUBM2,
producing non-zero estimates for all patterns. OPT, MVG and MUVG produced
non-zero estimates for 90% of patterns for the datasets. These false positives
indicate that spurious patterns exist in G_{SSS}. We note that our
estimation time is negligible, 0.00031 seconds on the average.

4. FUTURE WORK

For future work, we will investigate
techniques for estimating the cardinalities of larger patterns by combining
those of a number of smaller ones. We also hope to improve the accuracy of
negative queries and investigate how to handle updates.

5. ACKNOWLEDGMENTS

This work is funded by NSF-ITR-IDM Award #0325464 and #0714441 titled ‘SemDIS: Discovering Complex Relationships in the Semantic Web’.
